Product Summary

The XTR300AIRGWT is a complete output driver for industrial andprocess control applications. The output can be configuredas current or voltage by the digital I/V select pin. No external shunt resistor is required. Only externalgain-setting resistors and a loop compensation capacitorare required. The applications of the XTR300AIRGWT include PLC output programmable driver, industrial cross-connectors, Industrial high-voltage I/O, 3-wire-sensor current or voltageoutput, ±10V 2- and 4-wire voltage output Patents Pending.

Parametrics

XTR300AIRGWT absolute maximum ratings: (1)Voltage: +44V; (2)Signal Input TerminalsVoltage: (V-) -0.5V to (V+) + 0.5V; (3)Current: ±25mA; (4)DGND: ±25mA; (5)Output Short Circuit: Continuous; (6)Operating Temperature: -55℃ to +125℃; (7)Storage Temperature: -55℃ to +125℃; (8)Junction Temperature: +150℃; (9)ESD Rating Human Body Model: 2000V; (10)Charged Device Model: 1000V.

Features

XTR300AIRGWT features: (1)USER-SELECTABLE: Voltage or CurrentOutput; (2)+40V supply voltaged vout: ±10V (up to ±17.5V at ±20V supply); (3)IOUT: ±20mA (linear up to ±24mA); (4)short- or open-circuit faultindicator pin; (5)no current shunt required; (6)output disable for single input mode; (7)thermal protection; (8)over-current protection; (9)separate driver and receiverchannels; (10)designed for testability.

Diagrams

XTR300AIRGWT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

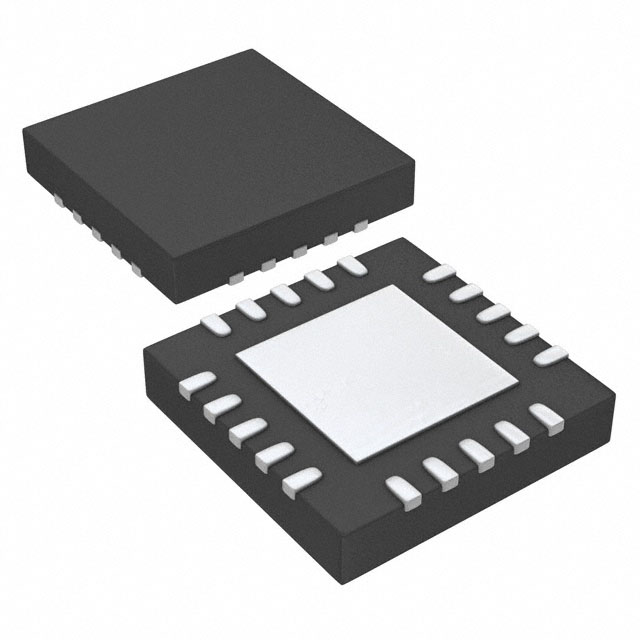

XTR300AIRGWT
XTR300AIRGWT

Texas Instruments

Current Sense Amplifiers Ind Analog Crnt/ Voltage Output Drv

Data Sheet

0-1: $2.97
1-10: $2.66
10-25: $2.38
25-50: $2.24
XTR300AIRGWTG4
XTR300AIRGWTG4

Texas Instruments

Current Sense Amplifiers Ind Analog Crnt/ Voltage Output Drv

Data Sheet

0-1: $2.97
1-10: $2.66
10-25: $2.38
25-50: $2.24
