Product Summary

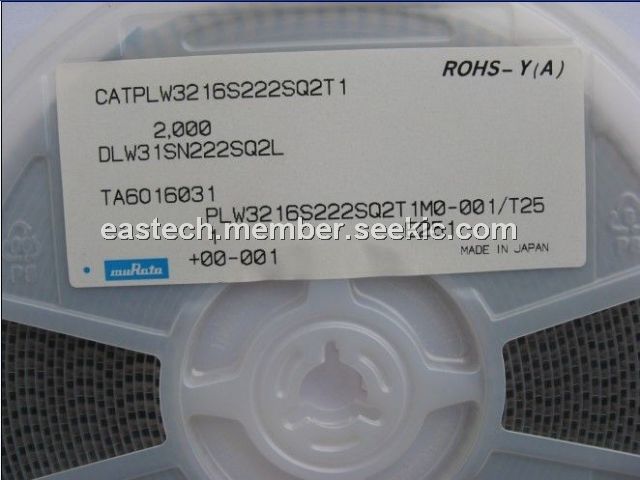

The DLW31SN222SQ2L is a common mode choke coil wire wound type.

Parametrics

DLW31SN222SQ2L specifications: (1)Common Mode Impedance(at 100MHz/20℃): 2200ohm±25%; (2)Rated Current: 200mA; (3)Rated Voltage: 50Vdc; (4)Insulation Resistance (min.): 10M ohm; (5)Withstand Voltage: 125Vdc; (6)DC Resistance: 1.2ohm max; (7)Operating Temperature Range: -40 to +85℃.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DLW31SN222SQ2L
DLW31SN222SQ2L
Murata
Common Mode Inductors (Chokes) 1206 2200ohm 50volt DCR 1.2ohm
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DLW31SH222SQ2L
DLW31SH222SQ2L
Murata
Common Mode Inductors (Chokes) 1206 2200ohm 32volt DCR 1.6ohm
Data Sheet
0-1: $0.84
1-50: $0.81
50-100: $0.65
100-500: $0.53
DLW31SN102SQ2L
DLW31SN102SQ2L
Murata
Common Mode Inductors (Chokes) 1206 1000ohm@100MHz Tol 25%
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
DLW31SN161SQ2L
DLW31SN161SQ2L
Murata
Common Mode Inductors (Chokes) 1206 160ohm 50volt DCR 0.4ohm
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
DLW31SN222SQ2L
DLW31SN222SQ2L
Murata
Common Mode Inductors (Chokes) 1206 2200ohm 50volt DCR 1.2ohm
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
DLW31SN261SQ2L
DLW31SN261SQ2L
Murata
Common Mode Inductors (Chokes) 1206 260ohm 50volt DCR 0.5ohm
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
DLW31SN601SQ2L
DLW31SN601SQ2L
Murata
Common Mode Inductors (Chokes) 1206 600ohm@100MHz Tol 25%
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
