Product Summary

The TSC2007IYZGR is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on an advanced low-voltage processor. It works with a supply voltage as low as 1.2V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure. The applications of the TSC2007IYZGR include Cellular Phones, PDA, GPS, and Media Players, Portable Instruments, Point-of-Sale Terminals, Multiscreen Touch Control.

Parametrics

TSC2007IYZGR absolute maxing ratings: (1)Voltage Analog input X+, Y+, AUX to GND: -0.4 to VDD+0.1 V; Analog input X–, Y– to GND: -0.4 to VDD+0.1 V; (2)Voltage range VDD to GND: -0.3 to +5 V; (3)Digital input voltage to GND: -0.3 to VDD+0.3 V; (4)Digital output voltage to GND: -0.3 to VDD+0.3 V; (5)Power dissipation: (TJ Max - TA)/θJA; (6)Thermal impedance, θJA TSSOP Package: 86℃/W; WCSP package Low-K: 113℃/W, High-K 62℃/W; (7)Operating free-air temperature range, TA: -40 to +85℃; (8)Storage temperature range, TSTG: -65 to +150℃; (9)Junction temperature, TJ Max: +150℃; (10)Lead temperature, Vapor phase (60 sec): +215℃; Infrared (15 sec): +220℃.

Features

TSC2007IYZGR features: (1)4-Wire Touch Screen Interface; (2)Single 1.2V to 3.6V Supply/Reference; (3)Ratiometric Conversion; (4)Effective Throughput Rate: Up to 20kHz (8-Bit) or 10kHz (12-Bit); (5)Preprocessing to Reduce Bus Activity; (6)I2C Interface Supports: Standard, Fast, and High-Speed Modes; (7)Simple, Command-Based User Interface: TSC2003 Compatible; 8- or 12-Bit Resolution; (8)On-Chip Temperature Measurement; (9)Touch Pressure Measurement; (10)Digital Buffered PENIRQ; (11)On-Chip, Programmable PENIRQ Pullup; (12)Auto Power-Down Control; (13)Low Power: 32.24mA at 1.2V, Fast Mode, 8.2kHz Eq Rate; 39.31mA at 1.8V, Fast Mode, 8.2kHz Eq Rate; 53.32mA at 2.7V, Fast Mode, 8.2kHz Eq Rate; (14)Enhanced ESD Protection: ±8kV HBM; ±1kV CDM; ±25kV Air Gap Discharge; ±15kV Contact Discharge; (15)1.5 x 2 WCSP-12 and 5 x 6.4 TSSOP-16 package.

Diagrams

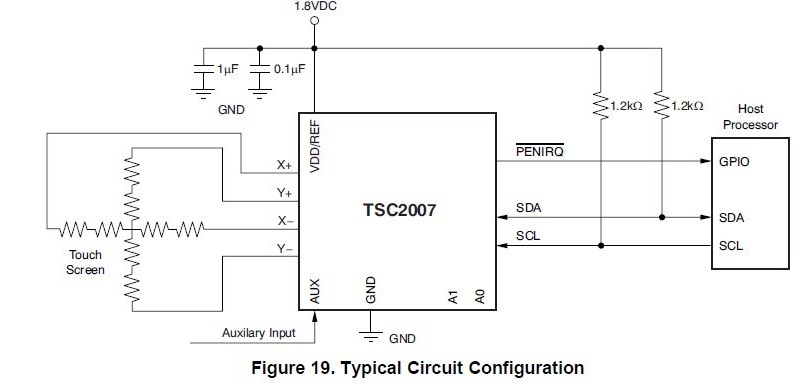

TSC2007IYZGR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

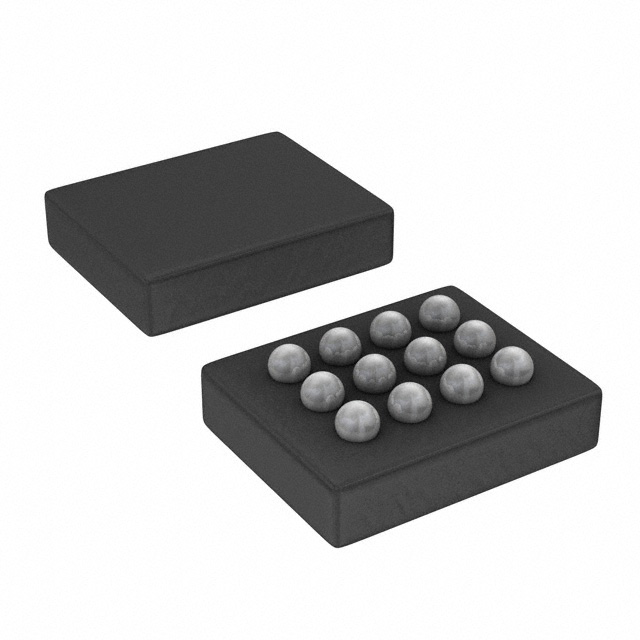

TSC2007IYZGR
TSC2007IYZGR

Texas Instruments

Touch Screen Converters & Controllers NANO-PWR CONTROLLER

Data Sheet

0-2230: $1.33
2230-3000: $1.28
