Product Summary
The TPA2100P1YZHR is a mono, Class-D audio power amplifier with integrated DC-DC converter designed for piezo and ceramic speakers. The TPA2100P1YZHR is capable of driving a ceramic / piezo speaker with 19 VPP (6.7 VRMS) from a 2.5 V power supply at less than 1% THD+N. The DC-DC converter operates at a fixed frequency of 1.2 MHz. The TPA2100P1YZHR DC-DC converter provides a 10 V supply with a minimum number of external components. The DC-DC converter can be used to drive other components that require a 10 V supply voltage. The applications of the TPA2100P1YZHR include Wireless or Cellular Handsets, Portable DVD Player, Personal Digital Assistants (PDAs), Electronic Dictionaries, Digital Still Cameras.
Parametrics
TPA2100P1YZHR absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 6.0 V; (2)Amplifier supply voltage, VccOUT, VccIN: -0.3 to 12.0 V; (3)VI Input voltage, IN-, IN+, SDa, SD, GAIN: -0.3 to VDD + 0.3 V; (4)Output continuous total power dissipation: See Dissipation Rating; (5)Table; (6)TA Operating free-air temperature range: -40 to 85℃; (7)TJ Operating junction temperature range: -40 to 150℃; (8)Tstg Storage temperature range: -65 to 150℃; (9)ESD Protection — HBM (All Pins): 2 kV.
Features
TPA2100P1YZHR features: (1)19 VPP Output Load Voltage From a 2.5 V Supply; (2)Integrated DC-DC Converter Generates 10 V Supply; (3)No External Schottky Diode Required; (4)Integrated Audio Input Low-Pass Filter; (5)Small Boost Converter Inductor; (6)Supply Voltage Range From 2.5 V to 5.5 V; (7)Selectable Gain of 12 dB, 16 dB, and 24 dB; (8)Independent Shutdown Control for the Boost Converter and the Audio Amplifier; (9)Fast Startup Time: 8 ms; (10)Low Supply Current: 5.5 mA; (11)Low Shutdown Current: < 1 mA; (12)Short-Circuit and Thermal Protection; (13)Space Saving Package, 2,1 mm × 2,1 mm NanoFree WCSP (YZH).

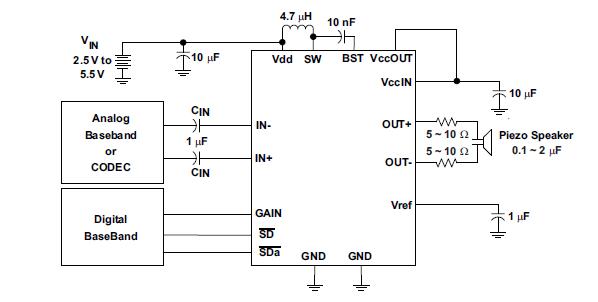

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPA2100P1YZHR |
Texas Instruments |
Audio Amplifiers 19Vpp Mono Class D Audio Amplifier |
Data Sheet |
|
|
||||||||||||
