Product Summary

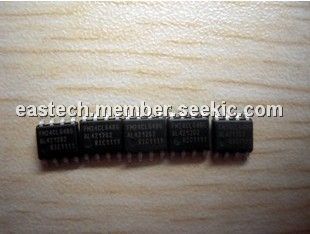

The FM24CL64-GTR is a 64-kilobit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or FRAM is nonvolatile and performs reads and writes like a RAM. The FM24CL64-GTR provides reliable data retention for 45 years while eliminating the complexities, overhead, and system level reliability problems caused by EEPROM and other nonvolatile memories.

Parametrics

FM24CL64-GTR absolute maximum ratings: (1)Power Supply Voltage with respect to VSS: -1.0V to +5.0V; (2)Voltage on any pin with respect to VSS: -1.0V to +5.0V and VIN < VDD+1.0V; (3)Storage Temperature: -55℃ to + 125℃; (4)Lead Temperature (Soldering, 10 seconds): 300℃; (5)Electrostatic Discharge Voltage: Human Body Model (JEDEC Std JESD22-A114-B): 4kV, Machine Model (JEDEC Std JESD22-A115-A): 300V.

Features

FM24CL64-GTR features: (1)64K bit Ferroelectric Nonvolatile RAM: Organized as 8,192 x 8 bits, Unlimited Read/Write Cycles, 45 year Data Retention, NoDelay Writes, Advanced High-Reliability Ferroelectric Process; (2)Fast Two-wire Serial Interface: Up to 1 MHz maximum bus frequency, Direct hardware replacement for EEPROM, Supports legacy timing for 100 kHz & 400 kHz; (3)Low Power Operation: True 2.7V-3.6V Operation, 75 μA Active Current (100 kHz), 1 μA Standby Current.

Diagrams

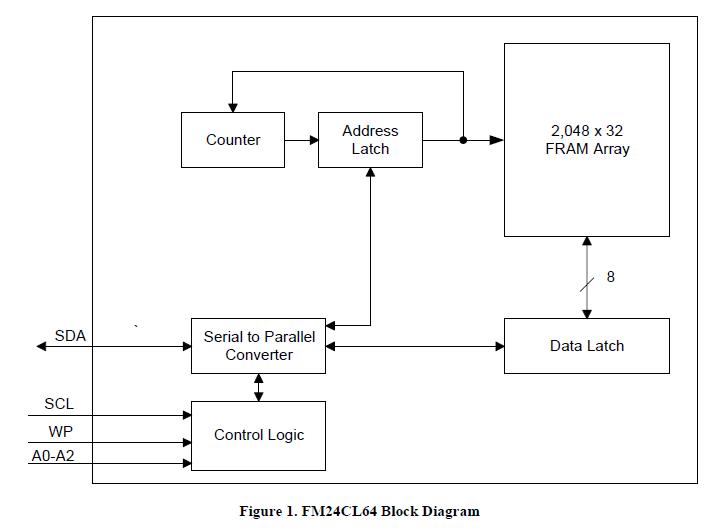

FM24CL64-GTR block diagram
