Product Summary

The DLW5BSN102SQ2L is a common mode choke coil wire wound type for large current.

Parametrics

DLW5BSN102SQ2L specifications: (1)Common Mode Impedance(at 100MHz/20℃): 10000ohm; (2)Rated Current: 1500mA; (3)Rated Voltage: 50Vdc; (4)Insulation Resistance (min.): 10M ohm; (5)Withstand Voltage: 125Vdc; (6)DC Resistance: 0.06ohm max; (7)Operating Temperature Range: -40 to +85℃.

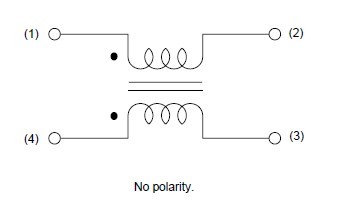

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DLW5BSN102SQ2L
DLW5BSN102SQ2L
Murata
Common Mode Inductors (Chokes) 2020 1000ohm@100MHz
Data Sheet
0-1: $2.41
1-10: $2.29
10-25: $2.11
25-100: $2.03
