Product Summary
The TMP01ESZ-REEL is a temperature sensor which generates a voltage output proportional to absolute temperature and a control signal from one of two outputs when the device is either above or below a specific temperature range. Both the high/low temperature trip points and hysteresis (overshoot) band are determined by user-selected external resistors. For high volume production, the resistor is available on-board. The applications of the TMP01ESZ-REEL include Over/Under Temperature Sensor and Alarm, Board Level Temperature Sensing, Temperature Controllers, Electronic Thermostats, Thermal Protection, HVAC Systems, Industrial Process Control, Remote Sensors.
Parametrics
TMP01ESZ-REEL absolute maximum ratings: (1)Maximum Supply Voltage: -0.3 V to +15 V; (2)Maximum Input Voltage (SETHIGH, SETLOW): -0.3 V to [(V+) +0.3 V]; (3)Maximum Output Current (VREF, VPTAT): 2 mA; (4)Maximum Output Current (Open Collector Outputs): 50 mA; (5)Maximum Output Voltage (Open Collector Outputs): 15 V; (6)Operating Temperature Range: -55℃ to +150℃; (7)Dice Junction Temperature: +150℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (Soldering, 60 sec): +300℃.
Features
TMP01ESZ-REEL features: (1)-55℃ to +125℃ (-67°F to +257°F) Operation; (2)±1.0℃ Accuracy Over Temperature (typ); (3)Temperature-Proportional Voltage Output; (4)User Programmable Temperature Trip Points; (5)User Programmable Hysteresis; (6)20 mA Open Collector Trip Point Outputs; (7)TTL/CMOS Compatible; (8)Single-Supply Operation (4.5 V to 13.2 V); (9)Low Cost 8-Pin DIP and SO Packages.

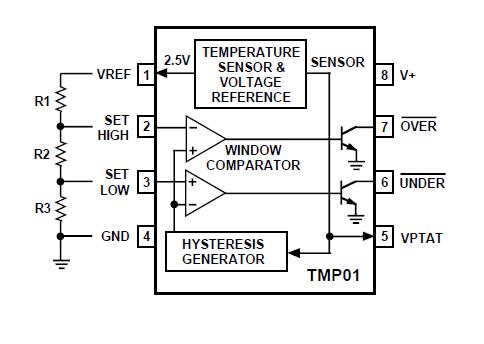

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMP01ESZ-REEL |
|
IC SENSOR TEMP/CONTROLLER 8SOIC |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
TMP006AIYZFR |
Texas Instruments |
Board Mount Temperature Sensors Infrared Thermopile Sensor |
Data Sheet |
|
|
||||||||||||
|
TMP006AIYZFT |
Texas Instruments |
Board Mount Temperature Sensors Infrared Thermopile Sensor |
Data Sheet |
|
|
||||||||||||
|
TMP006EVM |
Texas Instruments |
Temperature Sensor Development Tools TMP006 Eval Mod |
Data Sheet |
|
|
||||||||||||
 |
TMP01 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TMP01ES |
|
IC SENSOR TEMP/CONTROLLER 8SOIC |
Data Sheet |
|
|
||||||||||||
|
TMP01ES-REEL |
|
IC SENSOR TEMP/CONTROLLER 8SOIC |
Data Sheet |
|
|
||||||||||||
