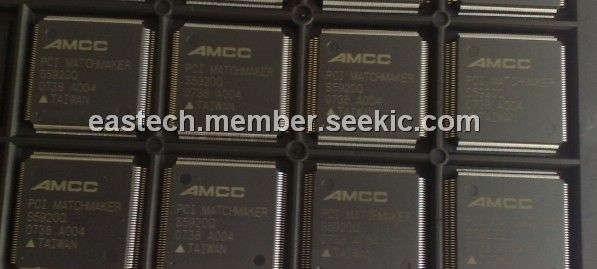

The S5920Q is a 32-Bit PCI Bus Target Interface. It is developed to provide the designer with a single multi-function device offering a flexible and easy means to connect applications to the PCI Local Bus. The applications of the S5920Q include: (1)ISA to PCI Local Bus Conversions I/O; (2)Communications Ports High Speed; (3)Data Output General Purpose PCI; (4)Interfacing Data Communications; (5)Memory Interfaces Data Acquisition; (6)Data Encryption/Decryption.
Parametrics
S5920Q absolute maxing ratings: (1)Supply Voltage Range (Vcc Core): -0.3 V to 7.0 V; (2)Input Pin Voltage Range: -0.5 V to VCC + 0.5 V; (3)Storage Temperature Range: -55 to 125 ℃; (4)Operating Ambient Temperature Range: 0 to 70 ℃; (5)Virtual Junction Temperature: 150 ℃; (6)Soldering Lead Temperature: 300 ℃ 10 Seconds.
Features
S5920Q features: (1)PCI 2.2 Compliant Target/Slave Device; (2)Full 132 Mbytes/sec Transfer Rate PCI; (3)Bus Operation DC to 33 Mhz Add-On Bus; (4)8 MHz to 40 Mhz Programmable Prefetch and Wait States 8/16/32 Bit Add-On User; (5)Bus Four Definable Pass-Thru Regions 32; (6)Byte Burstable PCI Bus FIFO; (7)Active/Passive Add-On Bus Operation; (8)Mail Box Registers w/Byte Level Status; (9)Direct Mail Box Data Strobe/Interrupt Pin; (10)Mail Box Read/Write Interrupts Direct.
