Product Summary

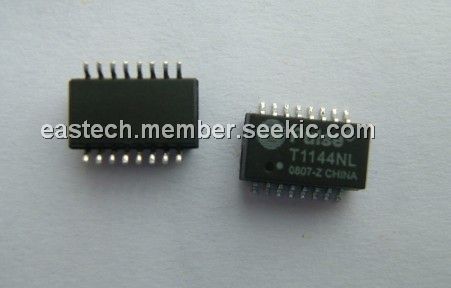

The T1144NL is a T1/CEPT/ISDN-PRI Transformer.

Parametrics

T1144NL absolute maximum ratings: (1)Turns Ratio: 1:2/2.4 & 1:0.79/1; (2)OCL: 1.00 & 1.00mH; (3)CW/W: 35 & 35pF; (4)LL 1.00 & 1.00μH; (5)DCR Pri 0.80 & 0.80Ω; (6)Package/Schematic: BH/5; (7)Primary Pins: 1-3, 6-8.

Features

T1144NL features: (1)RoHS-6 peak reflow temperature rating: 245℃; (2)Dual SMT package contains transmit and receive transformers; (3)Models matched to leading transceiver ICs; (4)Isolation voltage: 1500 Vrms; (5)UL recognized.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
T1144NL
T1144NL
Pulse
Transformers Audio & Signal TRANSFORMER DUAL
Data Sheet
0-1: $2.59
1-10: $1.73
10-100: $1.40
100-500: $1.24
T1144NLT
T1144NLT
Pulse
Transformers Audio & Signal TRANSFORMER DUAL
Data Sheet
0-1: $3.20
1-10: $2.58
10-100: $2.05
100-500: $1.89
500-600: $1.89
