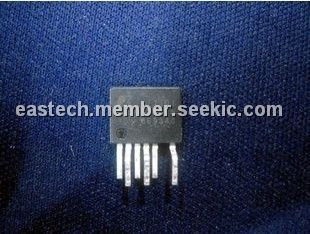

TOP260EN

Off-Line Switcher, -0.3V to 700V, 0.68A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.41~2.29 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.41~2.29

PartNumber:: TOP260EN

Brand:: Power Integrations, Inc. - Power | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:TOP260EN
US $0.41 - 2.29
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

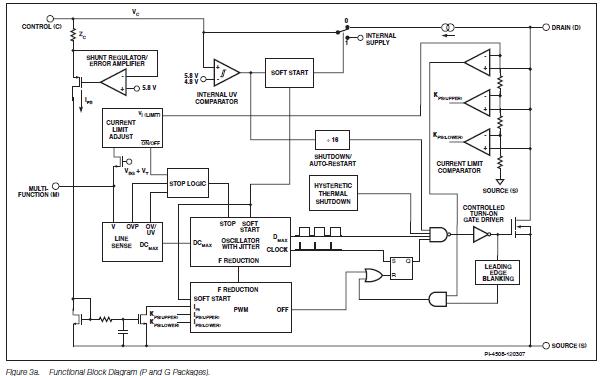

The TOP260EN is an Integrated Off-Line Switcher with Advanced Feature Set and Extended Power Range. The TOP260EN incorporates a 700 V power MOSFET, high voltage switched current source, PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.

Parametrics

TOP260EN absolute maximum ratings: (1)DRAIN Peak Voltage: -0.3 V to 700 V; (2)DRAIN Peak Current: 0.68 A; (3)CONTROL Voltage: -0.3 V to 9 V; (4)CONTROL Current: 100 mA; (5)VOLTAGE MONITOR Pin Voltage: -0.3 V to 9 V; (6)CURRENT LIMIT Pin Voltage: -0.3 V to 4.5 V; (7)MULTI-FUNCTION Pin Voltage: -0.3 V to 9 V; (8)FREQUENCY Pin Voltage: -0.3 V to 9 V; (9)Storage Temperature: -65 to 150℃; (10)Operating Junction Temperature: -40 to 150℃; (11)Lead Temperature: 260℃.

Features

TOP260EN features: (1)Low thermal impedance junction-to-case; (2)Low height is ideal for adapters where space is limited; (3)Simple mounting using a clip to aid low cost manufacturing; (4)Horizontal eSIP-7F package ideal for ultra low height adapter and monitor applications; (5)Extended package creepage distance from DRAIN pin to; (6)adjacent pin and to heat sink; (7)Line undervoltage (UV) detection prevents turn-off glitches; (8)Line overvoltage (OV) shutdown extends line surge limit; (9)Accurate programmable current limit; (10)Optimized line feed-forward for line ripple rejection.
