Product Summary

The SMP1352-079LF is a plastic packaged, surface mountable low capacitance (0.3 pF) silicon PIN diode. It is designed for large signal switch applications from 10 MHz to more than 10 GHz. The SMP1352-079LF has a reverse voltage rating of 200 V and are designed for use in low-distortion switches that are required to hold off large RF voltages. The applications of the SMP1352-079LF include Large signal switches in base stations and handsets.

Parametrics

SMP1352-079LF absolute maximum ratings: (1)Reverse voltage VR: 200V; (2)Power dissipation @ 25℃ lead temperature PD: 250mW; (3)Storage temperature TSTG:–65 to +150℃; (4)Operating temperature TA:–65 to +150℃.

Features

SMP1352-079LF feature: (1)Packages rated MSL1, 260℃ per JEDEC J-STD-020.

Diagrams

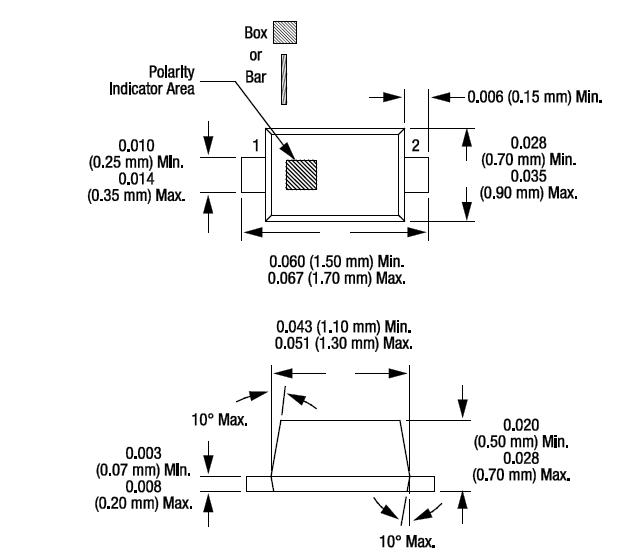

SMP1352-079LF dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SMP1352-079LF
SMP1352-079LF
Skyworks Solutions, Inc.
PIN Diodes Ls=.7nH SC-79 Single
Data Sheet
0-1: $0.32
1-50: $0.30
50-100: $0.27
100-500: $0.23
