Product Summary

The RF3023TR7 is a GaAs pHEMT single-pole double-throw (SPDT) switch designed for general purpose switching applications which require very low insertion loss, moderate isolation, and medium power handling capability. The RF3023TR7 is ideally suited for battery-powered and low control voltage applications. The applications of the RF3023TR7 include Cellular Handset Applications, Antenna Tuning Applications, IEEE 802.11b/g WLAN Applications, Cellular Infrastructure Applications.

Parametrics

RF3023TR7 absolute maximum ratings: (1)Control Voltage: 7.0 V; (2)Maximum Input Power: +36 dBm; (3)Operating Temperature: -40 to +85℃; (4)Storage Temperature: -55 to +150℃.

Features

RF3023TR7 features: (1)300 kHz to 4 GHz Operation; (2)0.25 dB Insertion Loss at 1 GHz; (3)26 dB Isolation at 2 GHz; (4)1.8 V Minimum Control Voltage; (5)28 dBm P0.1 dB at 3 V; (6)18 dBm P0.1 dB at 1.8 V; (7)58 dBm IP3 at 3 V.

Diagrams

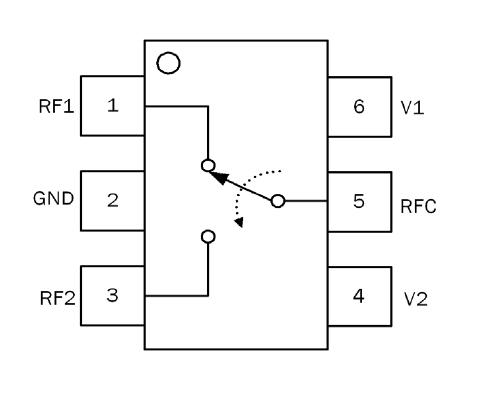

RF3023TR7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RF3023TR7
RF3023TR7

IC SWITCH SPDT BROADBAND SC70-6
Data Sheet
0-1: $1.00
1-10: $0.88
10-25: $0.79
25-100: $0.70
100-250: $0.61
250-500: $0.54
500-1000: $0.43
