Product Summary

The DLW21SN181SQ2L is a chip common mode choke coil wire wound type.

Parametrics

DLW21SN181SQ2L specifications: (1)Common Mode Impedance(at 100MHz/20℃): 180ohm±25%; (2)Rated Current: 330mA; (3)Rated Voltage: 50Vdc; (4)Insulation Resistance (min.): 10M ohm; (5)Withstand Voltage: 125Vdc; (6)DC Resistance: 0.35ohm max; (7)Operating Temperature Range: -40 to +85℃.

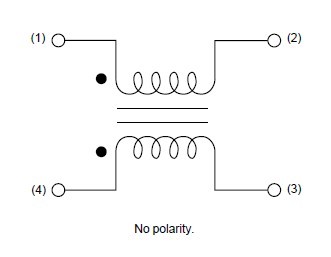

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

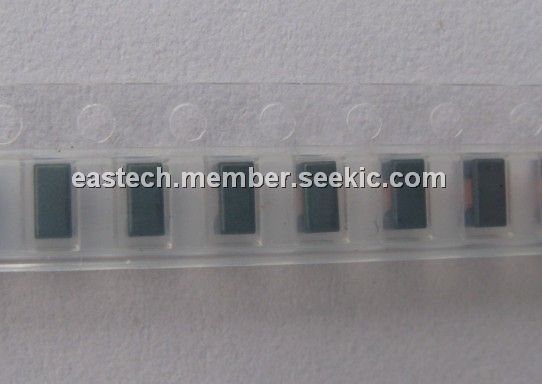

DLW21SN181SQ2L
DLW21SN181SQ2L

Murata

Common Mode Inductors (Chokes) 0805 180ohm 50volt DCR 0.35ohm

Data Sheet

0-1: $0.36
1-50: $0.32
50-100: $0.30
100-500: $0.23
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DLW21HN121SQ2L
DLW21HN121SQ2L

Murata

Common Mode Inductors (Chokes) 0805 120ohm@100MHz Tol 25%

Data Sheet

0-1: $0.29
1-50: $0.26
50-100: $0.24
100-500: $0.19
DLW21HN181SQ2L
DLW21HN181SQ2L

Murata

Common Mode Inductors (Chokes) 0805 180ohm@100MHz Tol 25%

Data Sheet

0-1: $0.29
1-50: $0.26
50-100: $0.24
100-500: $0.19
DLW21HN670SQ2L
DLW21HN670SQ2L

Murata

Common Mode Inductors (Chokes) 0805 67ohm@100MHz Tol 25%

Data Sheet

0-1: $0.29
1-50: $0.26
50-100: $0.24
100-500: $0.19
DLW21HN900SQ2L
DLW21HN900SQ2L

Murata

Common Mode Inductors (Chokes) 0805 90ohm@100MHz Tol 25%

Data Sheet

0-1: $0.29
1-50: $0.26
50-100: $0.24
100-500: $0.19
DLW21SN121HQ2L
DLW21SN121HQ2L

Murata

Common Mode Inductors (Chokes) 0805 120ohm@100MHz Tol 25%

Data Sheet

0-1: $0.44
1-50: $0.38
50-100: $0.36
100-500: $0.28
DLW21SN121SQ2L
DLW21SN121SQ2L

Murata

Common Mode Inductors (Chokes) 0805 120ohm 50volt DCR 0.45ohm

Data Sheet

0-1: $0.36
1-50: $0.32
50-100: $0.30
100-500: $0.23
