Product Summary
The OP777ARZ-REEL is a precision single supply amplifier featuring micropower operation and rail-to-rail output ranges. This amplifier provides improved performance over the industry-standard OP07 with ±15 V supplies and offers the further advantage of true single supply operation down to 2.7 V, and smaller package footprint than any other high-voltage precision bipolar amplifier. The applications of the OP777ARZ-REEL are (1)Precision Current Measurement; (2)Line or Battery-Powered Instrumentation; (3)Remote Sensors; (4)Precision Filters.
Parametrics
OP777ARZ-REEL absolute maximum ratings: (1)Supply Voltage: 36 V; (2)Input Voltage: VS– – 3 V to VS+ + 3 V; (3)Differential Input Voltage: ± Supply Voltage; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range: –65 to +150℃; (6)Operating Temperature Range: –40 to +85℃; (7)Junction Temperature Range:–65 to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): 300℃; (9)ESD (HBM): 2 kV.
Features
OP777ARZ-REEL features: (1)Low Offset Voltage: 100 V Max; (2)Low Input Bias Current: 10 nA Max; (3)Single-Supply Operation: 2.7 V to 30 V; (4)Dual-Supply Operation: 1.35 V to 15 V; (5)Low Supply Current: 270 A/Amp; (6)Unity Gain Stable; (7)No Phase Reversal.

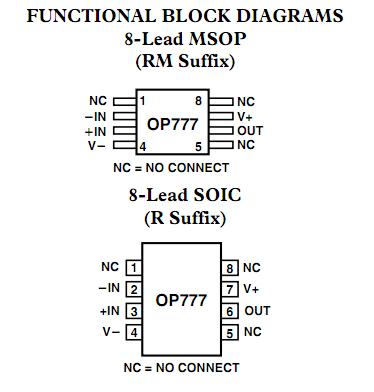

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP777ARZ-REEL |
|
IC OPAMP GP R-R 700KHZ 8SOIC |
Data Sheet |
|
|
||||||
|
OP777ARZ-REEL7 |
|
IC OPAMP GP R-R 700KHZ 8SOIC |
Data Sheet |
|
|
||||||
