Product Summary

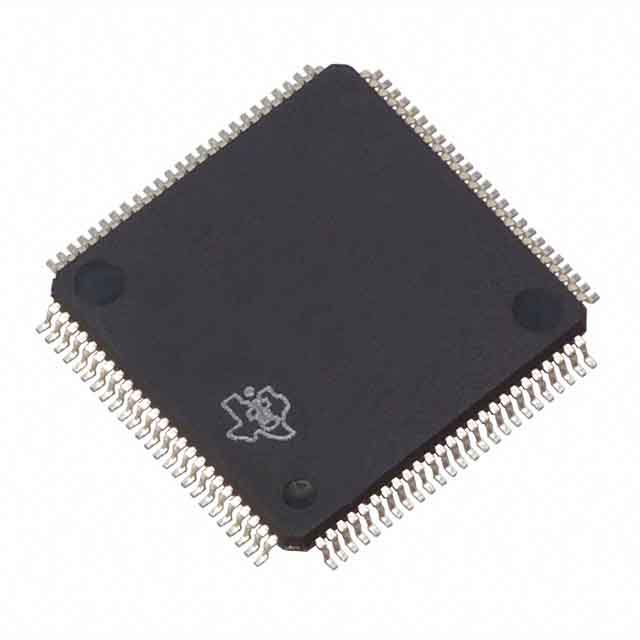

The MSP430FG4616IPZ is the ultralow power microcontroller which consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430FG4616IPZ features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs.
Parametrics
MSP430FG4616IPZ absolute maximum ratings: (1)Voltage applied at VCC to VSS: 0.3 V to 4.1 V; (2)Voltage applied to any pin (see Note): 0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg: (unprogrammed device): 55℃ to 150℃; (programmed device), 40℃ to 85℃.
Features
MSP430FG4616IPZ features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Five Power Saving Modes; (3)Wake-Up From Standby Mode in less than 6 μs; (4)16-Bit RISC Architecture,125-ns Instruction Cycle Time; (5)Single-Channel Internal DMA; (6)12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature; (7)Three Configurable Operational Amplifiers; (8) Dual 12-Bit D/A Converters With Synchronization; (9)16-Bit Timer_A With Three Capture/Compare Registers; (10)16-Bit Timer B With Three Capture/Compare-With-Shadow Registers; (11)On-Chip Comparator.

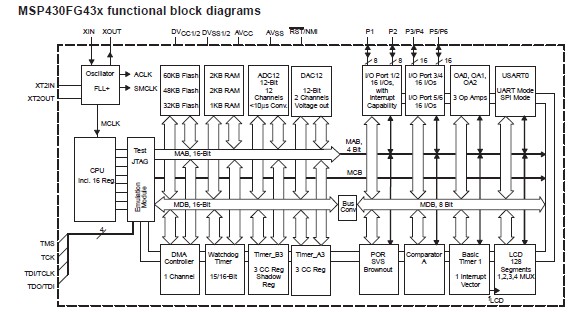

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

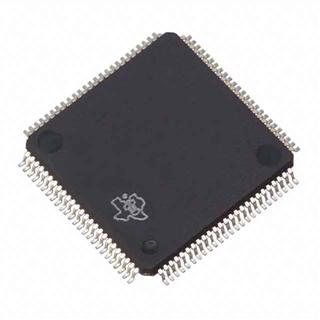

 MSP430FG4616IPZ |
Texas Instruments |
16-bit Microcontrollers (MCU) 16-Bit Ultra LP MCU 92KB Flash 4KB RAM |
Data Sheet |
|
|
||||||||||||
|
MSP430FG4616IPZR |
Texas Instruments |
16-bit Microcontrollers (MCU) 16-Bit Ultra LP MCU 92KB Flash 4KB RAM |
Data Sheet |
|
|
||||||||||||
