Product Summary
The MSP430F5437IPN is a mixed signal microcontroller. It features different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F5437IPN also features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. Applications of the MSP430F5437IPN include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, hand-held meters, etc.
Parametrics
MSP430F5437IPN absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin (excluding VCORE): -0.3 V to VCC + 0.3 V; (3)Diode current at any device pin: ±2 mA; (4)Storage temperature range, Tstg Unprogrammed device: -55℃ to 150℃; Programmed device: -40℃ to 105℃.
Features
MSP430F5437IPN features: (1)16-Bit Timer0_A5 With Five Capture/Compare Registers; (2)16-Bit Timer1_A3 With Three Capture/Compare Registers; (3)16-Bit Timer_B7 With Seven Capture/Compare Shadow Registers; (4)Hardware Multiplier Supporting 32-Bit Operations; (5)Serial Onboard Programming, No External Programming Voltage Needed; (6)Three Channel Internal DMA; (7)Basic Timer With Real Time Clock Feature.

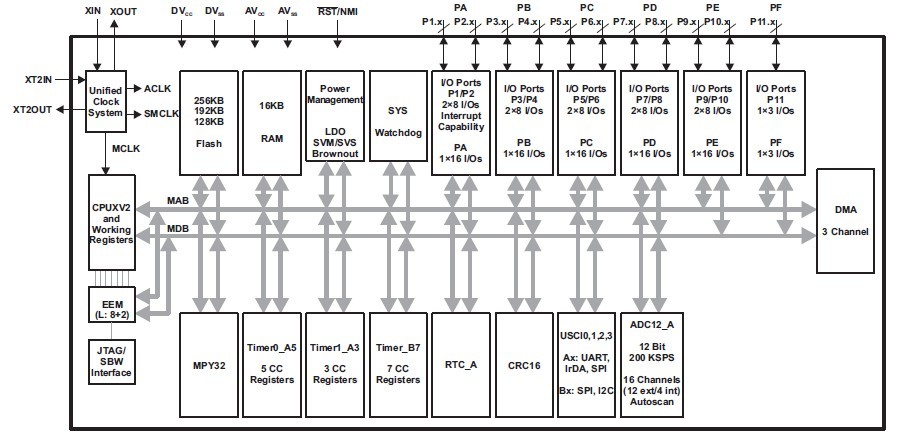

Diagrams

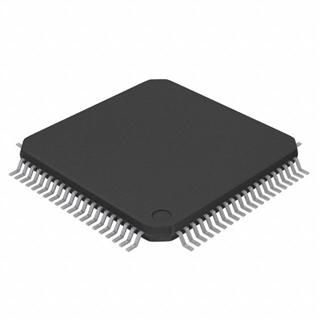

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MSP430F5437IPN |
Texas Instruments |
16-bit Microcontrollers (MCU) 16Bit Ultra-Low-Pwr Microcontroller |
Data Sheet |
|
|
||||||||||||
|
MSP430F5437IPNR |
Texas Instruments |
16-bit Microcontrollers (MCU) 16Bit Ultra-Low-Pwr Microcontroller |
Data Sheet |
|
|
||||||||||||
