Product Summary
The MC14489BPE is a 6-channel, single-slope, 8-10 bit analog-to-digital converter linear subsystem for microprocesseor-based data and control systems. Contained in both devices are a one-of-8 decoder, an 8-channel analog multiplexer, a buffer amplifier, a precision voltage-to-current converter, a ramp start circuit, and a comparator. The output driver of the MC14489BPE’s comparator is an open-drain N-channel which provides a sinking current. The output driver of the MC14489BPE’s comparator is a standard B-series P-channel, N-channel pair.
Parametrics
MC14489BPE absolute maximum ratings: (1)DC Supply Voltage: -0.5V to +18V; (2)Input Voltage, All inputs: -0.5 to VDD+0.5V; (3)DC input Current, per pin: ±10mA; (4)Operating Temperature Range: -40℃ to +85℃; (5)Storage Temperature Range: -65℃ to +150℃.
Features
MC14489BPE features: (1) Quiescent Current 0.8mA Typical at VDD=5V; (2) Single Supply Operation +4.5 to +18V; (3) Direct Interface to CMOS MPUs; (4) Typical Resolution: 8 bit; (5) Typical Conversion Cycle as fast as 300μs; (6) Ratiometric Conversion Minimized Error; (7) Analog Input Voltage Range: VSS to VDD -2V; (8) Chip Complexity.

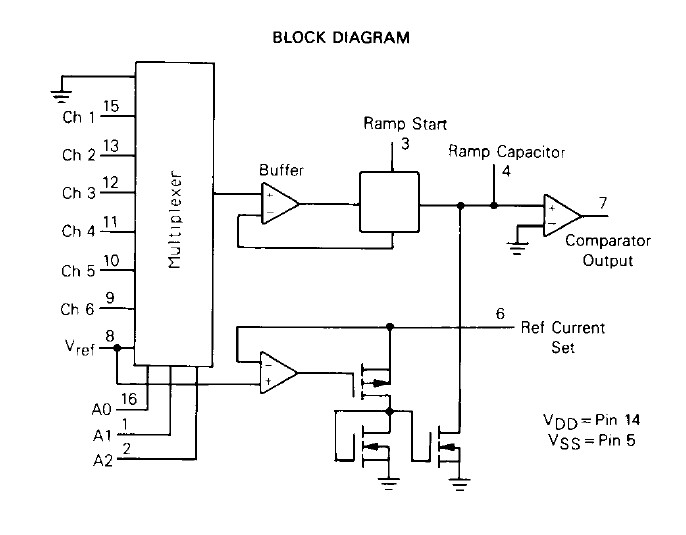

Diagrams
