TNY279PN TNY279PG

energy efficient, off-line switcher, -0.3 V to 700 V, 100 mA, Very low component count

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.19 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.19

PartNumber:: TNY279PN TNY279PG

Brand:: Power Integrations, Inc. - Power | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-04

From Other Seller

Part Number:TNY279PN TNY279PG
US $0.20 - 1.19
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

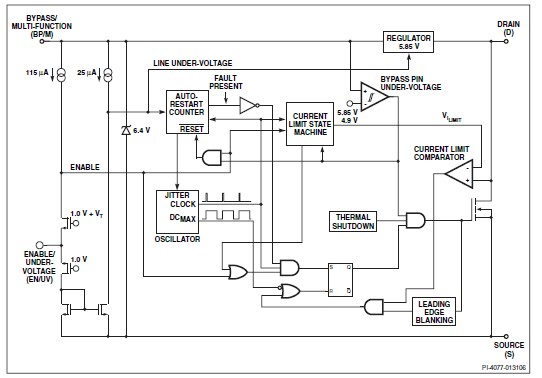

The TNY279PN is an energy efficient, off-line switcher with enhanced flexibility and extended power range. It incorporates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit (user selectable) and thermal shutdown circuitry. The applications of the TNY279PN include: (1)Chargers/adapters for cell/cordless phones, PDAs, digital cameras, MP3/portable audio, shavers, etc; (2)PC Standby and other auxiliary supplies; (3)DVD/PVR and other low power set top decoders; (4)Supplies for appliances, industrial systems, metering, etc.

Parametrics

TNY279PN absolute maximum ratings: (1)DRAIN Voltage: -0.3 V to 700 V; (2)DRAIN Peak Current: 1200 (2250) mA; (3)EN/UV Voltage: -0.3 V to 9 V; (4)EN/UV Current: 100 mA; (5)BP/M Voltage: -0.3 V to 9 V; (6)Storage Temperature: -65 ℃ to 150 ℃; (7)Operating Junction Temperature: -40 ℃ to 150 ℃; (8)Lead Temperature: 260 ℃.

Features

TNY279PN features: (1)Accurate hysteretic thermal shutdown protection with automatic recovery eliminates need for manual reset; (2)Improved auto-restart delivers <3% of maximum power in short circuit and open loop fault conditions; (3)Output overvoltage shutdown with optional Zener; (4)Line under-voltage detect threshold set using a single optional resistor; (5)Very low component count enhances reliability and enables single-sided printed circuit board layout; (6)High bandwidth provides fast turn on with no overshoot and excellent transient load response.
