LT3756EMSE-2#TRPBF

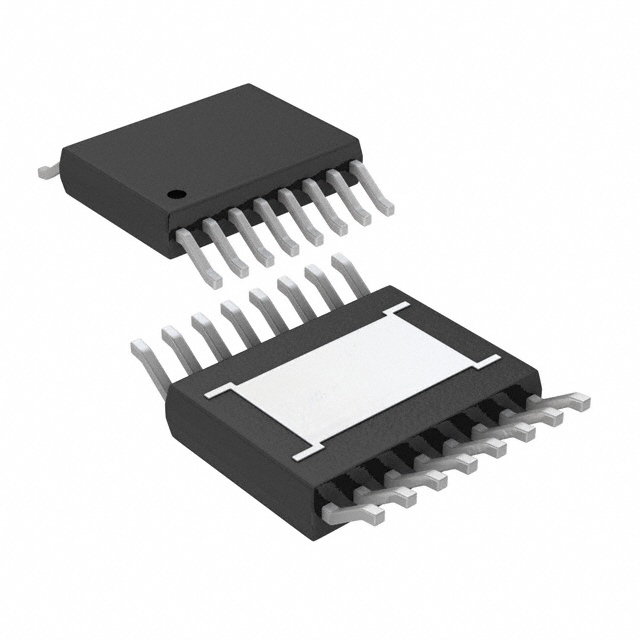

DC/DC controller, MSOP, 100V, LT3756EMSE-2#TRPBF, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.49~5.33 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.49~5.33

PartNumber:: LT3756EMSE-2#TRPBF

Brand:: Linear Technology - Linear | Pack: MSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LT3756EMSE-2#TRPBF
US $2.49 - 5.33
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

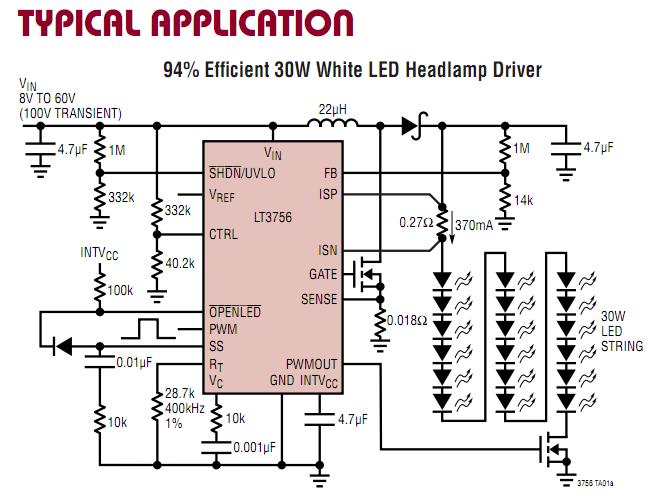

Product Summary

The LT3756EMSE-2#TRPBF is a DC/DC controller designed to operate as a constant-current source for driving high current LEDs. The LT3756EMSE-2#TRPBF drives a low side external N-channel power MOSFET from an internal regulated 7V supply. The ﬁxed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages. The applications of the LT3756EMSE-2#TRPBF are (1)High Power LED Applications; (2)Industrial; (3)Automotive.

Parametrics

LT3756EMSE-2#TRPBF absolute maximum ratings: (1)VIN: 100V; (2)SHDN/UVLO: 100V, VIN + 0.3V; (3)ISP, ISN: 100V; (4)INTVCC: 8V, VIN + 0.3V; (5)GATE, PWMOUT: INTVCC + 0.3V; (6)CTRL, PWM, OPENLED: 12V; (7)VC, VREF, SS, FB: 3V; (8)SYNC: 8V; (9)RT: 1.5V; (10)SENSE: 0.5V; (11)Operating Junction Temperature Range: –40 to 125℃; (12)Maximum Junction Temperature: 125℃; (13)Storage Temperature Range: –65 to 125℃.
