Product Summary

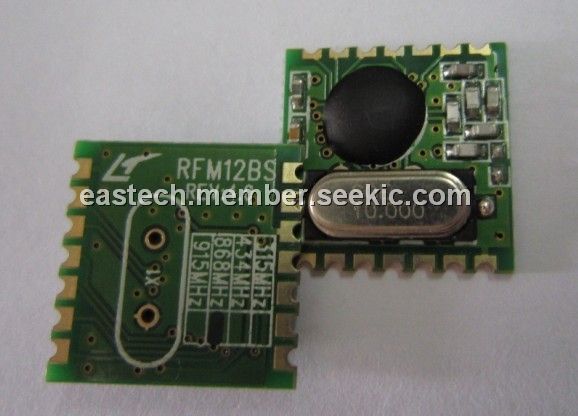

The RFM12B-868-S2 is a low costing ISM band transceiver module implemented with unique PLL. The RFM12B-868-S2 works signal ranges from 868 MHZ bands, comply with FCC, ETSI regulation. The SPI interface is used to communicate with microcontroller for parameter setting.
Parametrics
RFM12B-868-S2 absolute maximum ratings: (1)Vdd, Positive power supply: -0.5 to 6.0V; (2)Vin, All pin input level: -0.5 to Vdd+0.5V; (3)Iin, Input current except power: -25 to 25 mA; (4)ESD, Human body model: 1000V; (5)Tst, Storage temperature: -55 125℃; (6)Tld ,Soldering temperature(10s): 260℃.
Features
RFM12B-868-S2 features: (1)Low costing, high performance and price ratio; (2)Tuning free during production; (3)PLL and zero IF technology; (4)Fast PLL lock time; (5)High resolution PLL with 2.5 KHz step; (6)Differential antenna input/output; (7)Automatic antenna tuning; (8)Programmable TX frequency deviation (from 15 to 240 KHz); (9)Programmable receiver bandwidth (from 67 to 400 kHz); (10)Analog and digital signal strength indicator (ARSSI/DRSSI); (11)Automatic frequency control (AFC); (12)Data quality detection (DQD); (13)Internal data filtering and clock recovery; (14)RX synchron pattern recognition; (15)SPI compatible serial control interface; (16)Clock and reset signal output for external MCU use.
Diagrams
 |
