FM31256-GTR

integrated device, 2.7 to 5.5V, 100ms

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.69~2.79 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.69~2.79

PartNumber:: FM31256-GTR

Brand:: Ramtron International Corporation - RIC | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:FM31256-GTR
US $0.69 - 2.79
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

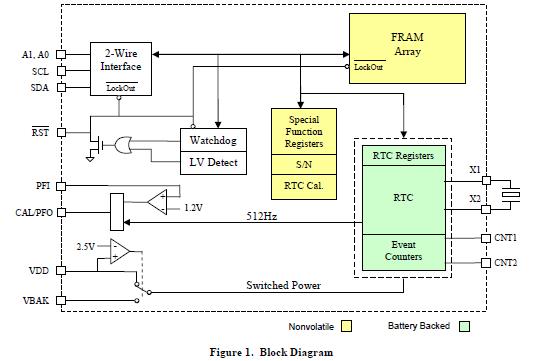

The FM31256-GTR is an integrated device that includes the most commonly needed functions for processor-based systems. Major features of the FM31256-GTR include nonvolatile memory available in various sizes, realtime clock, low-VDD reset, watchdog timer, nonvolatile event counter, lockable 64-bit serial number area, and general purpose comparator that can be used for an early power-fail (NMI) interrupt or other purpose. The FM31256-GTR operates from 2.7 to 5.5V. The device provides nonvolatile RAM available in sizes including 4Kb, 16Kb, 64Kb, and 256Kb versions.

Parametrics

FM31256-GTR absolute maximum ratings: (1)VDD, Power Supply Voltage with respect to VSS: -1.0V to +7.0V; (2)VIN, Voltage on any signal pin with respect to VSS: -1.0V to +7.0V and VIN ≤ VDD+1.0V; (3)VBAK, Backup Supply Voltage: -1.0V to +4.5V; (4)TSTG, Storage Temperature: -55 to +125℃; (5)TLEAD, Lead Temperature (Soldering, 10 seconds): 260℃; (6)VESD, Electrostatic Discharge Voltage: 100V; (7)Package Moisture Sensitivity Level: MSL-2.

Features

FM31256-GTR features: (1)Serial Nonvolatile Memory; (2)Real-time Clock (RTC); (3)Low Voltage Reset; (4)Watchdog Timer; (5)Early Power-Fail Warning/NMI; (6)Two 16-bit Event Counters; (7)Serial Number with Write-lock for Security; (8)Active-low Reset Output for VDD and Watchdog; (9)Programmable VDD Reset Trip Point; (10)Manual Reset Filtered and Debounced; (11)Programmable Watchdog Timer; (12)Dual Battery-backed Event Counter Tracks System Intrusions or other Events; (13)Comparator for Early Power-Fail Interrupt; (14)64-bit Programmable Serial Number with Lock.
