Product Summary

The LM2676S-3.3/NOPB is a High Efficiency 3A Step-Down Voltage Regulator. It provides all of the active functions for a step-down (buck) switching regulator capable of driving up to 3A loads with excellent line and load regulation characteristics. The LM2676S-3.3/NOPB also has built in thermal shutdown, current limiting and an ON/OFF control input that can power down the regulator to a low 50μA quiescent current standby condition. The applications of the LM2676S-3.3/NOPB are Simple to design, high efficiency (>90%) step-down switching regulators, Efficient system pre-regulator for linear voltage regulators, Battery chargers.

Parametrics

LM2676S-3.3/NOPB absolute maximum ratings: (1)Input Supply Voltage:45V; (2)ON/OFF Pin Voltage:-0.1V to 6V; (3)Switch Voltage to Ground:-1V to VIN; (4)Boost Pin Voltage:VSW +8V; (5)Feedback Pin Voltage:-0.3V to 14V; (6)Power Dissipation:Internally Limited; (7)ESD:2 kV; (8)Storage Temperature Range:-65℃ to 150℃.

Features

LM2676S-3.3/NOPB features: (1)Efficiency up to 94%; (2)Simple and easy to design with (using off-the-shelf external components); (3)150 mΩ DMOS output switch; (4)3.3V, 5V and 12V fixed output and adjustable (1.2V to 37V) versions; (5)50μA standby current when switched OFF; (6)±2% maximum output tolerance over full line and load conditions; (7)Wide input voltage range: 8V to 40V; (8)260 KHz fixed frequency internal oscillator; (9)-40 to +125℃ operating junction temperature range.

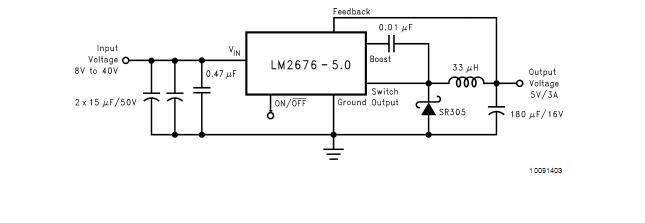

Diagrams

LM2676S-3.3/NOPB pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM2676S-3.3/NOPB
LM2676S-3.3/NOPB

National Semiconductor (TI)

Switching Converters, Regulators & Controllers HIGH EFF 3A STEP- DOWN VLTG REG

Data Sheet

0-1: $3.01
1-25: $2.42
25-100: $2.20
100-250: $1.99
