Product Summary
The DAC7811IDGSR is a CMOS 12-bit current output digital-to-analog converter (DAC). This device operates from a 3.0 V to 5.5 V power supply, making it suitable to both battery-powered and many other applications. The DAC7811IDGSR offers excellent 4-quadrant multiplication characteristics, with large signal multiplying bandwidth of 10 MHz. The DAC7811IDGSR is available in a 10-lead MSOP package as well as a small 10-lead SON package. The applications of the DAC7811IDGSR are: (1)Portable Battery-Powered Instruments; (2)Waveform Generators; (3)Programmable Amplifiers and Attenuators; (4)Programmable Filters and Oscillators; (5)Composite Video; (6)Ultrasound.
Parametrics
DAC7811IDGSR absolute maximum ratings: (1)VDD to GND: –0.3 to +7.0 V; (2)Digital input voltage to GND: –0.3 to VDD + 0.3 V; (3)VOUT to GND: –0.3 to VDD + 0.3 V; (4)Operating temperature range: –40 to +125 ℃; (5)Storage temperature range: –65 to +150 ℃; (6)Junction temperature (TJ max): +150 ℃; (7)ESD Rating, HBM: 1500 V; (8)ESD Rating, CDM: 1000 V.
Features
DAC7811IDGSR features: (1)2.7 V to 5.5 V Supply Operation; (2)50 MHz Serial Interface; (3)10 MHz Multiplying Bandwidth; (4)Low Glitch Energy: 2 nV-s; (5)10-Lead SON Package; (6)12-Bit Monotonic; (7)4-Quadrant Multiplication; (8)Power-On Reset with Brownout Detection; (9)Industry-Standard Pin Configuration.

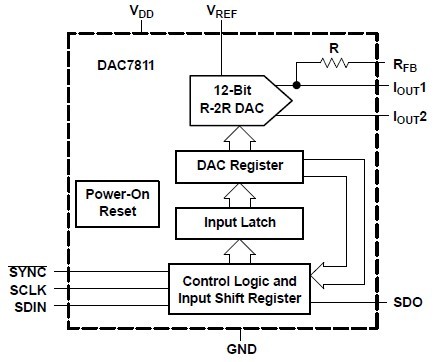

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() DAC7811IDGSR |
![]() Texas Instruments |
![]() DAC (D/A Converters) 12-Bit Serial Input Multiplying DAC |
![]() Data Sheet |
![]()
|
|
||||||||
![]() |
![]() DAC7811IDGSRG4 |
![]() Texas Instruments |
![]() DAC (D/A Converters) 12-Bit Serial Input Multiplying DAC |
![]() Data Sheet |
![]()
|
|
