Product Summary

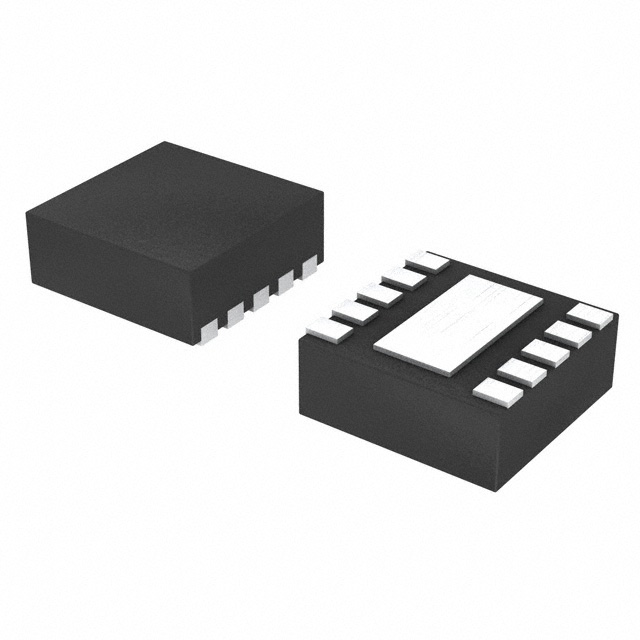

The BQ24041DSQT is a highly integrated and flexible Li-Ion linear charge device targeted at space-limited charger applications. It offers an integrated power FET and current sensor, high-accuracy current and voltage regulation, charge status, and charge termination, in a single monolithic device. An external resistor sets the magnitude of the charge current. The applications of the BQ24041DSQT include PDAs, MP3 Players, Digital Cameras, Internet Appliances and Smartphones.

Parametrics

BQ24041DSQT absolute maximum ratings: (1)VI, Input voltage: -0.3 to 7 V; Output sink/source current: 15 mA; Output current: 1.5 A; (2)TA, Operating free-air temperature range: -40 to 125℃; (3)TJ, Junction temperature range: -40 to 125℃; (4)Tstg, Storage temperature: – 65 to 150℃; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.

Features

BQ24041DSQT features: (1)Small 3 mm × 3 mm MLP Package; (2)Integrated Power FET and Current Sensor for Up to 1-A Charge Applications From AC Adapter; (3)Precharge Conditioning With Safety Timer; (4)Charge and Power Good (AC Adapter Present With Fixed Safety) Status Output; (5)Automatic Sleep Mode for Low-Power Consumption; (6)Fixed 7-Hour Fast Charge Safety Timer; (7)Ideal for Low-Dropout Charger Designs for Single-Cell Li-Ion or Li-Pol Packs in Space-Limited Portable Applications.

Diagrams

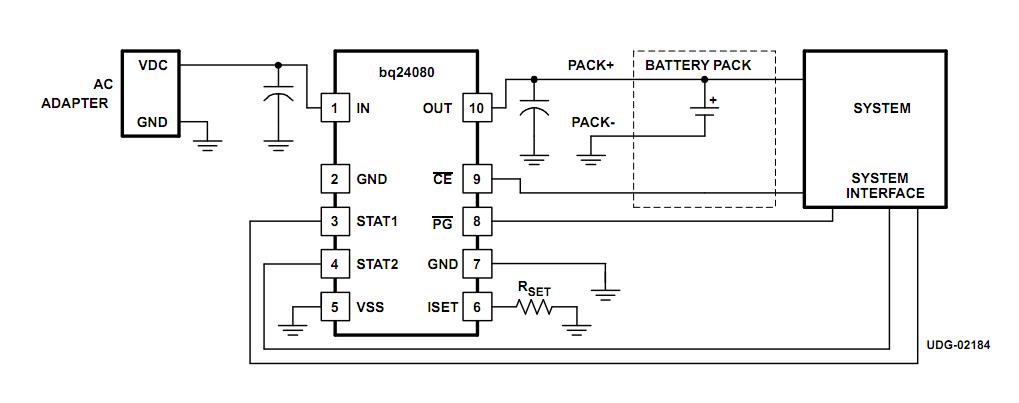

BQ24041DSQT block diagram
