ACS712ELCTR-05B-T

Hall Effect-Based Linear Current Sensor, SOP-8, 8V, 3mA, Low noise

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~2.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~2.55

PartNumber:: ACS712ELCTR-05B-T

Brand:: Allegro MicroSystems - Allegro | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:ACS712ELCTR-05B-T
US $1.10 - 2.55
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

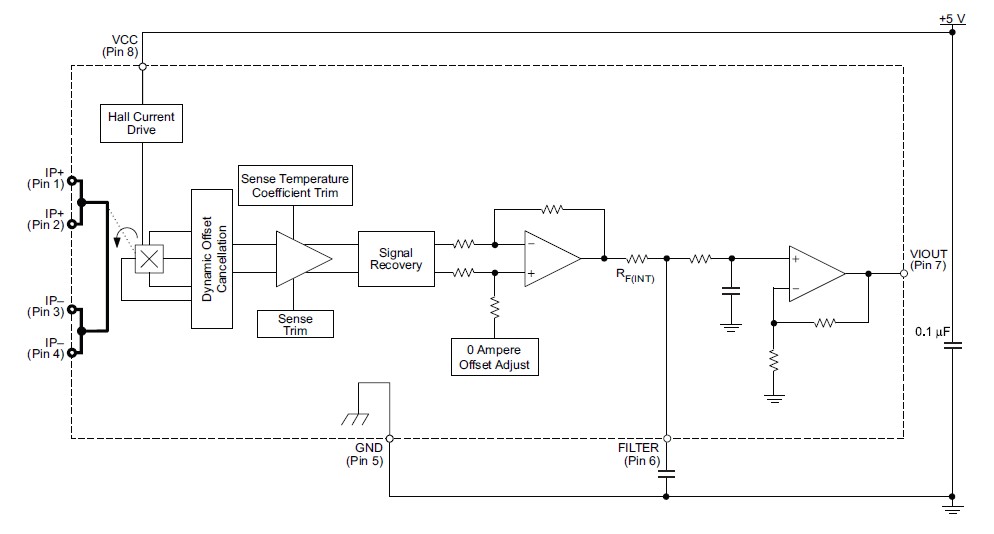

The ACS712ELCTR-05B-T is a Fully Integrated, Hall Effect-Based Linear Current Sensor with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor. The device provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. The ACS712ELCTR-05B-T package allows for easy implementation by the customer. The typical applications of the ACS712ELCTR-05B-T include motor control, load detection and management, switch-mode power supplies, and overcurrent fault protection.

Parametrics

ACS712ELCTR-05B-T absolute maximum ratings: (1)Supply Voltage: 8V; (2)Reverse Supply Voltage:-0.1V; (3)Output Voltage: 8V; (4)Reverse Output Voltage: -0.1V; (5)Output Current Source: 3mA; (6)Output Current Sink: 10mA; (7)Overcurrent Transient Tolerance: 60A; (8)Nominal Operating Ambient Temperature: -40℃ to 85℃; (9)Maximum Junction Temperature: 165℃; (10)Storage Temperature: -65℃ to 170℃.

Features

ACS712ELCTR-05B-T features: (1)Low-noise analog signal path; (2)Device bandwidth is set via the new FILTER pin; (3)5 μs output rise time in response to step input current; (4)80 kHz bandwidth; (5)Total output error 1.5% at TA = 25℃; (6)Small footprint, low-profile SOIC8 package; (7)1.2 mΩ internal conductor resistance; (8)2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8; (9)5.0 V, single supply operation; (10)66 to 185 mV/A output sensitivity; (11)Output voltage proportional to AC or DC currents; (12)Factory-trimmed for accuracy; (13)Extremely stable output offset voltage; (14)Nearly zero magnetic hysteresis; (15)Ratiometric output from supply voltage.
