Product Summary
The LM4809MM/NOPB is a dual audio power amplifier capable of delivering 105 mW per channel of continuous average power into a 16W load with 0.1% (THD+N) from a 5V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the LM4809MM/NOPB does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems. The unity-gain stable LM4809MM/NOPB can be configured by external gain-setting resistors.
Parametrics
LM4809MM/NOPB absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Storage Temperature: -65℃ to +150℃; (3)Input Voltage: -0.3V to VDD + 0.3V; (4)Power Dissipation: Internally limited; (5)ESD Susceptibility: 3500V; (6)ESD Susceptibility: 250V; (7)Junction Temperature: 150℃; (8)IDD Supply Current VIN = 0V, IO = 0A: 3.0 mA (max); (9)Ptot Total Power Dissipation VIN = 0V, IO = 0A: 16.5 mW (max); (10)VOS Input Offset Voltage VIN = 0V: 50 mV (max).
Features
LM4809MM/NOPB features: (1)SOP and MSOP surface mount packaging; (2)Switch on/off click suppression; (3)Excellent power supply ripple rejection; (4)Unity-gaistable; (5)Minimum external components.

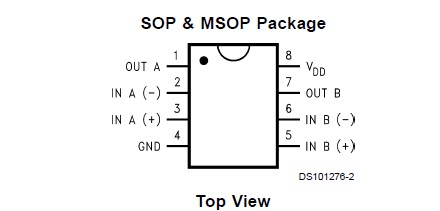

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4809MM/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
