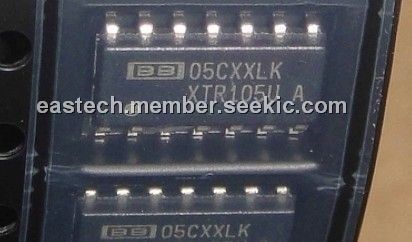

XTR105U

two-wire current transmitter, 14-SOIC, 20mA, 40V, XTR105U, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.11~7.33 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.11~7.33

PartNumber:: XTR105U

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-30

From Other Seller

Part Number:XTR105U
US $4.11 - 7.33
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XTR105U is a monolithic 4-20mA, two-wire current transmitter with two precision current sources. It provides complete current excitation for Platinum RTD temperature sensors and bridges, instrumentation amplifier, and current output circuitry on a single integrated circuit. The applications of the XTR105U are: (1)industriaprocess control; (2)factory automation; (3)scada remote data acquisition; (4)remote temperature and pressure transducers.

Parametrics

XTR105U absolute maximum ratings: (1)Power Supply, V+ (referenced to IO pin): 40V; (2)Input Voltage, VIN, VIN (referenced to IO pin): 0V to V+; (3)Storage Temperature Range: –55℃ to +125℃; (4)Lead Temperature (soldering, 10s): +300℃; (5)Output Current Limit: Continuous; (6)Junction Temperature: +165℃.

Features

XTR105U features: (1)Low unadjusted error; (2)Two precision current sources 800μA each; (3)RTD or bridge excitation; (4)Linearization; (5)Two or three-wire rtd operation; (6)Low offset drift: 0.4mV/℃; (7)Low output current noise: 30nAp-p; (8)High PSR: 110dB min; (9)High CMR: 86dB min; (10)Wide supply range: 7.5V TO 36V; (11)14-pin dip and so-14 soic packages.
