Product Summary
The XCF01SVOG20C is a platform flash in-system programmable configuration PROMS. It provides an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams.
Parametrics
XCF01SVOG20C absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to +4.0V; (2)VCCO, I/O supply voltage relative to GND: –0.5 to +4.0V; (3)VCCJ, JTAG I/O supply voltage relative to GND: –0.5 to +4.0V; (4)TSTG, Storage temperature (ambient): –65 to +150℃; (5)TJ, Junction temperature: +125 ℃.
Features
XCF01SVOG20C features: (1)In-System Programmable PROMs for Configuration of Xilinx FPGAs; (2)Low-Power Advanced CMOS NOR FLASH Process; (3)Endurance of 20,000 Program/Erase Cycles; (4)Operation over Full Industrial Temperature Range (-40℃ to +85℃); (5)IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing; (6)JTAG Command Initiation of Standard FPGA Configuration; (7)Cascadable for Storing Longer or Multiple Bitstreams; (8)Dedicated Boundary-Scan (JTAG) I/O Power Supply (VCCJ); (9)I/O Pins Compatible with Voltage Levels Ranging From 1.5V to 3.3V; (10)Design Support Using the Xilinx Alliance ISE and Foundation ISE Series Software Packages.

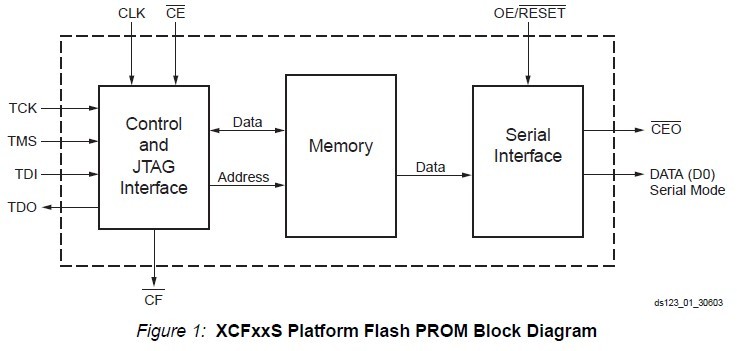

Diagrams
 |
