Product Summary

The TS3A5017RGYR is a dual single-pole quadruple-throw (4:1) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital andanalog signals, and signals up to V+ can be transmitted in either direction. The applications of the TS3A5017RGYR include Sample-and-Hold Circuit, Battery-Powered Equipment, Audio and Video Signal Routing, Communication Circuits.

Parametrics

TS3A5017RGYR absolute maximum ratings: (1)V+, Supply voltage range: -0.5 to 4.6V; (2)VS, VD, Analog voltage range: -0.5 to 4.6V; (3)IK, Analog port diode current, VS, VD < 0: -50mA; (4)IS, ID, On-state switch current, VS, VD = 0 to 7 V: -128 to 128mA; (5)VI, Digital input voltage range: -0.5 to 4.6V; (6)IIK, Digital input clamp current, VI < 0: -50mA; (7)I+, Continuous current through V+: 100mA; (8)IGND, Continuous current through GND: -100mA; (9)Tstg, Storage temperature range: -65 to 150℃.

Features

TS3A5017RGYR features: (1)Isolation in the Powered-Down Mode, V+ = 0; (2)Low ON-State Resistance (10 W); (3)Low Charge Injection; (4)Excellent ON-State Resistance Matching; (5)Low Total Harmonic Distortion (THD); (6)2.3-V to 3.6-V Single-Supply Operation; (7)Latch-Up Performance Exceeds 100 mA PerJESD 78, Class II; (8)ESD Performance Tested Per JESD 22, 2000-V Human-Body Model(A114-B, Class II); 1000-V Charged-Device Model (C101).

Diagrams

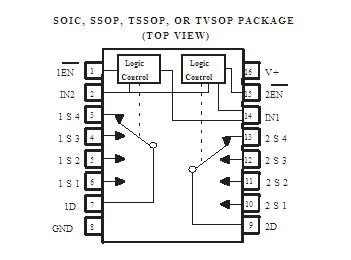

TS3A5017RGYR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TS3A5017RGYR
TS3A5017RGYR
Texas Instruments
Analog Switch ICs 14O Dual SP4T Ana Sw
Data Sheet
0-2400: $0.21
2400-3000: $0.21
3000-12000: $0.20
TS3A5017RGYRG4
TS3A5017RGYRG4
Texas Instruments
Analog Switch ICs 14O Dual SP4T Ana Sw
Data Sheet
0-2400: $0.21
2400-3000: $0.20
3000-6000: $0.20
6000-12000: $0.20
