Product Summary

The TS12A44514PWR is a quad single pole/single throw (SPST), low-voltage / wide range, single-supply CMOS analog switch, with very low switch ON-state resistance. The TS12A44514PWR is normally open (NO). The CMOS switch can operate continuously with a single supply between 2 V and 12 V. Each switch can handle rail-to-rail analog signals. The OFF-leakage current maximum is only 1 nA at 25℃ or 10 nA at 85℃.

Parametrics

TS12A44514PWR absolute maximum ratings: (1)V+, Supply voltage range: -0.3 to 13V; (2)VNC, VNO, VCOM, Analog voltage range: -0.3 V+ to +0.3V; (3)INC, INO, ICOM, Analog Current range: -20 to 20mA; (4)Continuous current into any terminal: ±20mA; (5)Peak current, NO or COM (pulsed at 1 ms, 10% duty cycle): ±30mA; (6)ESD per method 3015.7: 2000V; (7)TA, Operating temperature range: -40 to 85℃; (8)Tstg, Storage temperature range: -65 to 150℃; (9)Lead temperature (soldering, 10 s): 300℃.

Features

TS12A44514PWR features: (1)2-V to 12-V Single-Supply Operation; (2)Specified Low OFF-Leakage Currents: 15Ω Max With 12-V Supply; 20Ω Max With 5-V Supply; 50Ω Max With 3.3-V Supply; (3)Specified ON-State Resistance: 1 nA at 25℃; 10 nA at 85℃; ; (4)Specified Low ON-Leakage Currents: 1 nA at 25℃; 10 nA at 85℃ RDSON Matching, 2.5Ω (Max) at 12 V; 3Ω (Max) at 5 V; 3.5Ω (Max) at 3.3 V; (5)Low Charge Injection: 11.5 pC (12-V Supply); (6)Fast Switching Speed: tON = 80 ns, tOFF = 50 ns (12-V Supply); (7)Break-Before-Make Operation (tON > tOFF); (8)TTL/CMOS-Logic Compatible With 5-V Supply; (9)Available in TSSOP-14 Package, SOIC-14.

Diagrams

TS12A44514PWR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

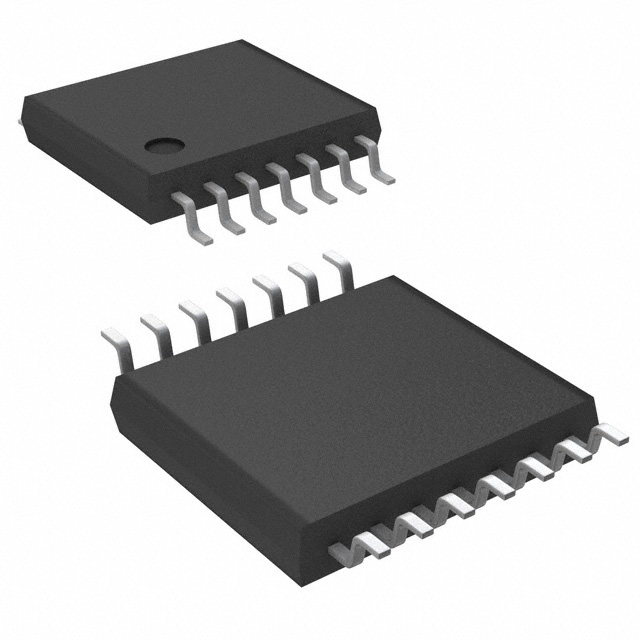

TS12A44514PWR
TS12A44514PWR
Texas Instruments
Analog Switch ICs Lo On-State Res Quad SPST CMOS Ana Sw
Data Sheet
0-1: $1.09
1-25: $0.85
25-100: $0.76
100-250: $0.63
TS12A44514PWRG4
TS12A44514PWRG4
Texas Instruments
Analog Switch ICs Lo On-State Res Quad SPST CMOS Ana Sw
Data Sheet
0-1430: $0.50
1430-2000: $0.48
2000-5000: $0.46
5000-10000: $0.45
