Product Summary

The TPS79433DCQR is a low-dropout (LDO) low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in NanoStar wafer chip scale and SOT23 packages. NanoStar packaging gives an ultrasmall footprint as well as an ultralow profile and package weight, making it ideal for portable applications such as handsets and PDAs. The applications of the TPS79433DCQR include RF: VCOs, Receivers, ADCs, Audio, Cellular and Cordless Telephones, Bluetooth, Wireless LAN, Handheld Organizers, PDAs.

Parametrics

TPS79433DCQR absolute maximum ratings: (1)Input voltage range: -0.3 V to 6 V; (2)Voltage range at EN: -0.3 V to VI + 0.3 V; (3)Voltage on OUT: -0.3 V to 6 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)ESD rating, CDM: 500 V; (7)Continuous total power dissipation: See Dissipation Rating Table; (8)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (9)Operating ambient temperature range, TA: -40℃ to 85℃; (10)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TPS79433DCQR features: (1)250-mA RF Low-Dropout Regulator With Enable; (2)Available in 1.8-V, 2.5-V, 2.8-V, 2.85-V, 3-V, 3.3-V, 4.75-V, and Adjustable (1.2-V to 5.5-V); (3)High PSRR (60 dB at 10 kHz); (4)Ultralow-Noise (32 μVRMS, TPS79428); (5)Fast Start-Up Time (50 μs); (6)Stable With a 2.2-μF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)Very Low Dropout Voltage (155 mV at Full Load); (9)Available in MSOP-8 and SOT223-6 Packages.

Diagrams

TPS79433DCQR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

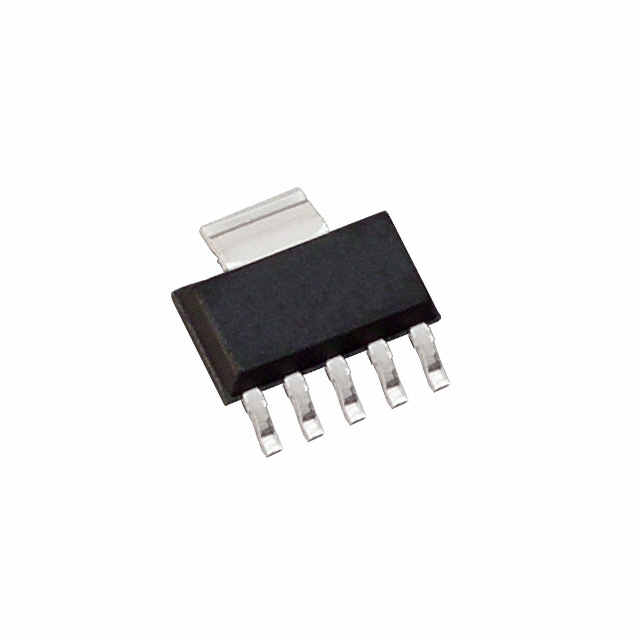

TPS79433DCQR
TPS79433DCQR
Texas Instruments
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 250-mA
Data Sheet
0-1: $1.09
1-25: $0.88
25-100: $0.80
100-250: $0.72
TPS79433DCQRG4
TPS79433DCQRG4
Texas Instruments
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 250-mA
Data Sheet
Negotiable
