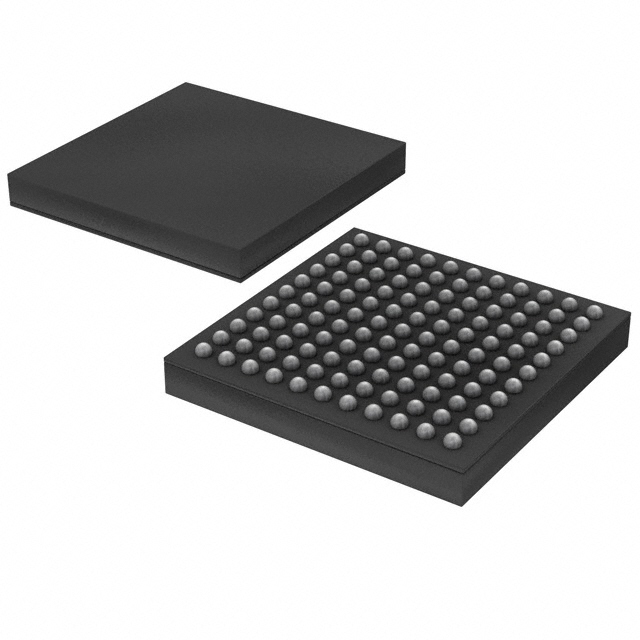

TPS658610ZQZT

Product Summary

The TPS658610ZQZT is an Advanced Power Management Unit. The TPS658610ZQZT provides an easy to use, fully integrated solution for handheld devices, integrating charge management, multiple regulated power supplies, system management and display functions in a small 6×6 package. The I2C interface enables control of a wide range of subsystem parameters. Internal register shave a complete set of status information, enabling easy diagnostics and host-controlled handling of fault conditions. The applications of the TPS658610ZQZT include Smart Phones, Portable Navigation Devices, Portable Media Players.

Parametrics

TPS658610ZQZT absolute maximum ratings: (1)AC and USB with respect to AGND1: –0.3 V to 18 V; (2)ANLG1, ANLG2, ANLG3 with respect to AGND2: –0.3 V to 6.5 V; (3)V(SYS), V(VIN_CHG) with respect to AGND1: –0.3 V to 6.5V; (4)VIN_LDO01, VIN_LDO23, VIN_LDO4, VIN_LDO678, VIN_LDO9 with respect to AGND1: –0.3 V to 6.5 V; (5)ADC_REF with respect to AGND2: –0.3 V to 3.6 V; (6)RTC_OUT with respect to V(SYS): –5.5 V to 3.6 V; (7)RTC_OUT with respect to AGND1: –0.3 V to 3.6 V; (8)LDO0, LDO1, LDO2, LDO3, LDO4, LDO5, LDO6, LDO7, LDO8, LDO9, V2V2 and TS with respect to AGND1: -0.3 V to 3.6 V; (9)V32K with respect to AGND1: -0.3 V to 3.6 V; (10)TS with respect to V2V2: -2.3 V to 0.3 V.

Features

TPS658610ZQZT features: (1)BATTERY CHARGER, Complete Charge Management Solution for a Single Cell Li-Ion/Li-Pol Cell With Dynamic Power Management and Thermal Foldback; Maximum 1.0A charge current; Programmable Adapter and USB Charge Operation; (2)INTEGRATED POWER SUPPLIES, 3 Programmable Step-Down converters, Software Controlled Enable/Forced PWM mode; Automatic Power Saving Mode; Maximum 1.2A Outputs; 11 Programmable General Purpose LDOs, 7 With Output Voltages of 1.25V to 3.3V; 2 With Output Voltages of 0.725V to 1.5V or 1.25V to 2.586V (factory configurable); 1“Always On” With Output Voltages of 1.25V to 3.3V; 1 With Output Voltage of 1.70V–2.475V.

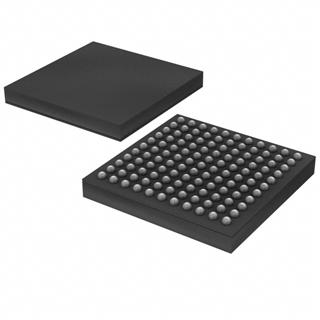

Diagrams
