TPS51206DSQR

TPS51206DSQR, Peak Sink/Source DDR Termination Regulator, SON, -0.3 to 7V, 2A, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.59~2.99 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.59~2.99

PartNumber:: TPS51206DSQR

Brand:: Texas Instruments - TI | Pack: SON | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:TPS51206DSQR
US $0.59 - 2.99
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

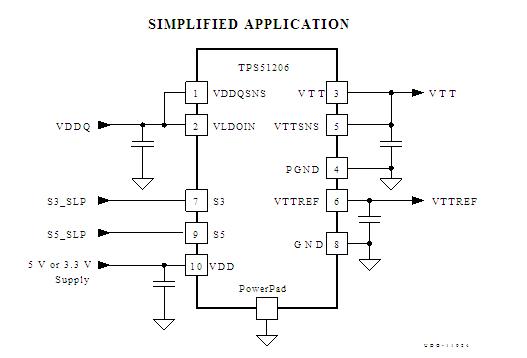

The TPS51206DSQR is a sink/source double date rate (DDR) termination regulator with VTTREF buffered reference output. It is specifically designed for low input voltage, low cost, low external component countsystems where space is a key consideration. The TPS51206DSQR maintains fast transient response and only requires 1× 10-μF of ceramic output capacitance. The TPS51206 supports a remote sensing function and all power requirements for DDR2, DDR3 and Low-Power DDR3 (DDR3L) VTT bus. The applications of the TPS51206DSQR include DDR2/DDR3/DDR3L Memory Power Supplies, SSTL_18, SSTL_15, SSTL_135 and HSTL Termination.

Parametrics

TPS51206DSQR absolute maximum ratings: (1)Input voltage range, VDD, S3, S5: -0.3 to 7V; VLDOIN, VTTSNS, VDDQSNS: -0.3 to 3.6V; PGND: -0.3 to 0.3V; (2)Output voltage range, VTT, VTTREF: -0.3 to 3.6V; (3)Electrostatic discharge, HBM QSS 009-105 (JESD22-A114A): 2kV; CDM QSS 009-147 (JESD22-C101B.01): 500V; (4)Junction temperature, TJ: 125℃; (5)Operating free-air temperature, TA: -55 to 150℃.

Features

TPS51206DSQR features: (1)Supply Input Voltage: Supports 3.3-V Rail and 5-V Rail; (2)VLDOIN Input Voltage Range: VTT+0.4 V to 3.5 V; (3)VTT Termination Regulator, Output Voltage Range: 0.5 V to 0.9 V; 2-A Peak Sink and Source Current; Requires Only 10-μF MLCC Output Capacitor; ±20 mV Accuracy; (4)VTTREF Buffered Reference, VDDQ/2 ± 1% Accuracy; 10-mA Sink/Source Current; (5)Supports High-Z in S3 and Soft-Stop in S4/S5 with S3/S5 Inputs; (6)Over Temperature Protection; (7)10-pin 2mm x 2mm SON(DSQ) Package.
