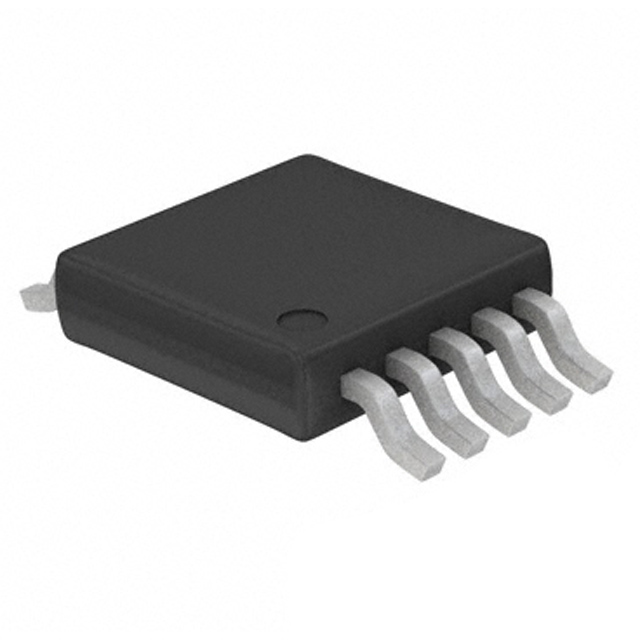

Product Summary
The TPS3606-33DGS is a supervisory circuit monitor and controls the processor activity. In case of powerfail or brownout conditions, the backup-battery switchover function of the TPS3606-33DGS allows a low-power processor and its peripherals to run from the installed backup battery without asserting a reset beforehand. The applications of the TPS3606-33DGS include Fax Machines, Set-Top Boxes, Advanced Voice Mail Systems, Portable Battery Powered Equipment, Computer Equipment, Advanced Modems, Automotive Systems, Portable Long-Time Monitoring Equipment, Point-of-Sale Equipment.
Parametrics
TPS3606-33DGS absolute maximum ratings: (1)Supply voltage: VDD: 7 V; (2)MR, WDI, and PFI pins: -0.3 V to (VDD + 0.3 V); (3)Continuous output current at VOUT: IO: 300 mA; (4)All other pins, IO: ±10 mA; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Operating free-air temperature range, TA: -40℃ to 85℃; (7)Storage temperature range, Tstg: -65℃ to 150℃; (8)Lead temperature soldering 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TPS3606-33DGS features: (1)Supply Current of 40 μA (Max); (2)Precision 3.3-V Supply Voltage Monitor Other Voltage Options on Request; (3)Watchdog Timer With 800-ms Time-Out; (4)Backup-Battery Voltage Can Exceed VDD; (5)Power-On Reset Generator With Fixed 100-ms Reset Delay Time; (6)Voltage Monitor for Power-Fail or Low-Battery Monitoring; (7)Manual Switchover to Battery-Backup Mode; (8)Manual Reset; (9)Battery Freshness Seal; (10)10-Pin MSOP Package; (11)Temperature Range: -40℃ to 85℃.

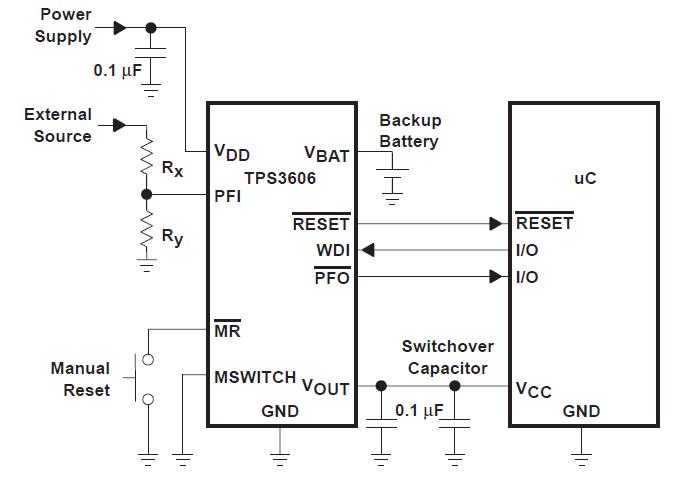

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS3606-33DGS |
Texas Instruments |
Supervisory Circuits Battery-Backup for LP Processor |
Data Sheet |
|
|
||||||||||||
|
TPS3606-33DGSG4 |
Texas Instruments |
Supervisory Circuits Battery-Backup for LP Processor |
Data Sheet |
|
|
||||||||||||
|
TPS3606-33DGSRG4 |
Texas Instruments |
Supervisory Circuits Battery-Backup for LP Processor |
Data Sheet |
|
|
||||||||||||
|
TPS3606-33DGSR |
Texas Instruments |
Supervisory Circuits Battery-Backup for LP Processor |
Data Sheet |
|
|
||||||||||||
