TMS320F2808ZGMA

Product Summary

The TMS320F2808ZGMA is a Digital Signal Processor, a member of the TMS320C28x DSP generation. The TMS320F2808ZGMA is highly integrated, high-performance solutions for demanding control applications. UCD9501 is a 32-bit digital signal controller for power management. Throughout this document, the device is abbreviated as F2808, F2806, and F2801/9501, respectively. TMS320x280x device reference guides, flash tools, and other collateral are applicable to the UCD9501 device as well.

Parametrics

TMS320F2808ZGMA absolute maximum ratings: (1)Supply voltage range, VDDIO, VDD3VFL with respect to VSS: -0.3 V to 4.6 V; (2)Supply voltage range, VDDA2, VDDAIO with respect to VSSA: -0.3 V to 4.6 V; (3)Supply voltage range, VDD with respect to VSS: - 0.3 V to 2.5 V; (4)Supply voltage range, VDD1A18, VDD2A18 with respect to VSSA: -0.3 V to 2.5 V; (5)Supply voltage range, VSSA2, VSSAIO, VSS1AGND, VSS2AGND with respect to VSS: -0.3 V to 0.3 V; (6)Input voltage range, VIN: -0.3 V to 4.6 V; (7)Output voltage range, VO: -0.3 V to 4.6 V; (8)Input clamp current, IIK (VIN < 0 or VIN > VDDIO): ±20 mA; (9)Output clamp current, IOK (VO < 0 or VO > VDDIO): ±20 mA; (10)Operating ambient temperature ranges, TA: A version (GGM, PZ)(4): - 40℃ to 85℃; TA: S version (GGM, PZ)(4) -40℃ to 125℃; (11)TA: Q version ( PZ)(4) -40℃ to 125℃; (12)Junction temperature range, Tj: -40℃ to 150℃; (13)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TMS320F2808ZGMA features: (1)High-Performance Static CMOS Technology; (2)JTAG Boundary Scan Support; (3)High-Performance 32-Bit CPU (TMS320C28x); (4)On-Chip Memory; (5)Boot ROM (4K x 16); (6)Clock and System Control; (7)Any GPIO A Pin Can Be Connected to One of the Three External Core Interrupts; (8)Peripheral Interrupt Expansion (PIE) Block That Supports All 43 Peripheral Interrupts; (9)128-Bit Security Key/Lock; (10)Enhanced Control Peripherals; (11)Three 32-Bit CPU Timers; (12)Serial Port Peripherals; (13)12-Bit ADC, 16 Channels; (14)Up to 35 Individually Programmable, Multiplexed General-Purpose Input/Output(GPIO) Pins With Input Filtering; (15)Low-Power Modes and Power Savings, IDLE, STANDBY, HALT Modes Supported; Disable Individual Peripheral Clocks.

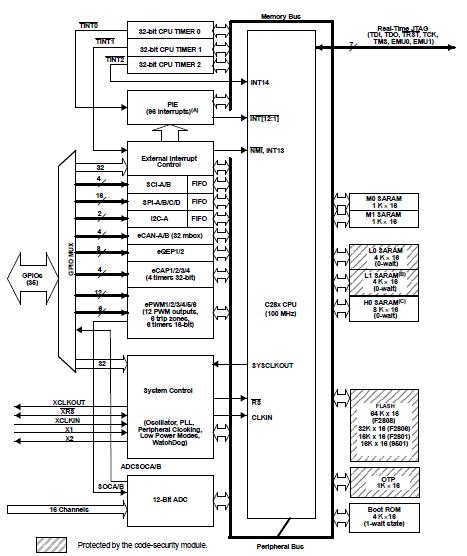

Diagrams
