Product Summary
The TMP75AIDGKR is a Digital Temperature Sensor with Two-Wire Interface. The TMP75AIDGKR is capable of reading temperatures with a resolution of 0.0625℃. The TMP75AIDGKR features a Two-Wire interface that is SMBus-compatible, with it allowing up to 27 devices on one bus and it allowing up to eight devices on one bus.
Parametrics
TMP75AIDGKR absolute maximum ratings: (1)Power Supply, V+: 7.0V; (2)Input Voltage: -0.5V to 7.0V; (3)Input Current: 10mA; (4)Operating Temperature Range: -55℃ to +127℃; (5)Storage Temperature Range: -60℃ to +130℃; (6)Junction Temperature (TJ max): +150℃; (7)ESD Rating Human Body Model (HBM): 4000V; (8)Charged Device Model (CDM): 1000V; (9)Machine Model (MM): 300V.
Features

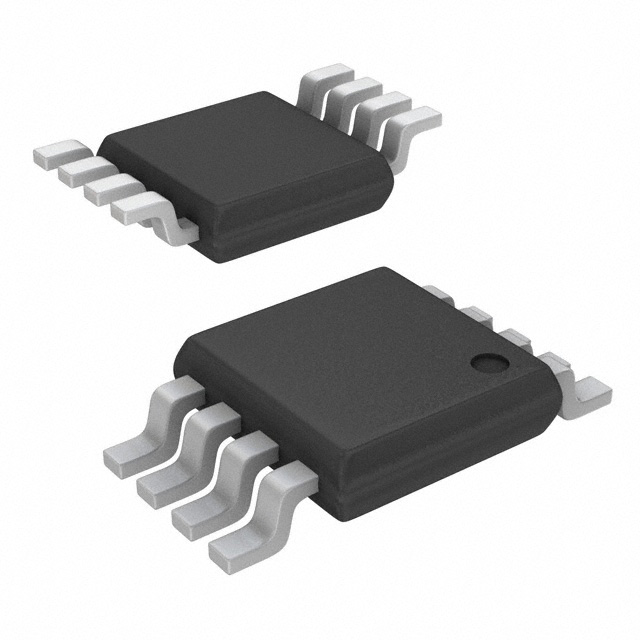

TMP75AIDGKR features: (1)8 addresses; (2)digital output: Two-Wire Serial Interface; (3)resolution: 9- to 12-Bits, User-Selectable; (4)Low quiescent current: 50μA, 0.1μA Standby; (5)wide supply range: 2.7V to 5.5V; (6)small SO-8 and MSOP-8 packages.

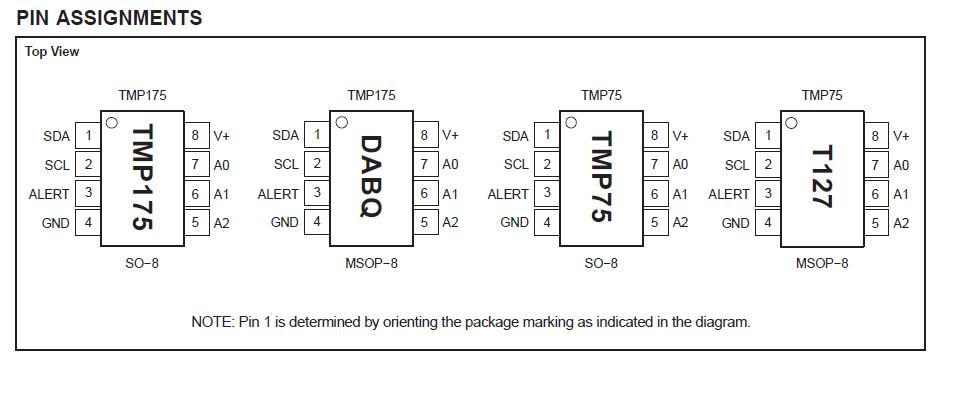

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMP75AIDGKR |
Texas Instruments |
Board Mount Temperature Sensors Digital w/2-Wire Ifc |
Data Sheet |
|
|
||||||||||||
|
TMP75AIDGKRG4 |
Texas Instruments |
Board Mount Temperature Sensors Digital w/2-Wire Ifc |
Data Sheet |
|
|
||||||||||||
