Product Summary

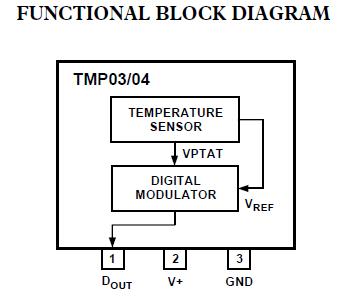

The TMP04FSZ-REEL is a monolithic temperature detector that generates a modulated serial digital output that varies in direct proportion to the temperature of the device. An onboard sensor generates a voltage precisely proportional to absolute temperature which is compared to an internal voltage reference and input to a precision digital modulator. The ratiometric encoding format of the serial digital output is independent of the clock drift errors common to most serial modulation techniques such as voltageto-frequency converters. Overall accuracy is ±1.5℃ (typical) from -25℃ to +100℃, with excellent transducer linearity. The applications of the TMP04FSZ-REEL include Isolated Sensors, Environmental Control Systems, Computer Thermal Monitoring, Thermal Protection, Industrial Process Control, Power System Monitors.

Parametrics

TMP04FSZ-REEL absolute maximum ratings: (1)Maximum Supply Voltage: +9 V; (2)Maximum Output Current (TMP03 DOUT): 50 mA; (3)Maximum Output Current (TMP04 DOUT): 10 mA; (4)Maximum Open-Collector Output Voltage (TMP03): +18 V; (5)Operating Temperature Range: -55℃ to +150℃; (6)Dice Junction Temperature: +175℃; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (Soldering, 60 sec): +300℃.

Features

TMP04FSZ-REEL features: (1)Low Cost 3-Pin Package; (2)Modulated Serial Digital Output Proportional to Temperature; (3)±1.58C Accuracy (typ) from -25℃ to +100℃; (4)Specified -40℃ to +100℃, Operation to 150℃; (5)Power Consumption 6.5 mW Max at 5 V; (6)Flexible Open-Collector Output on TMP03; (7)CMOS/TTL Compatible Output on TMP04; (8)Low Voltage Operation (4.5 V to 7 V).
