Product Summary
The TLV5633IDW is a 12-bit voltage output digital- to-analog converter (DAC) with an 8-bit microcontroller compatible parallel interface. The 8 LSBs, the 4 MSBs, and 5 control bits are written using three different addresses. Developed for a wide range of supply voltages, the TLV5633IDW can be operated from 2.7 V to 5.5 V. The resistor string output voltage is buffered by a x2 gain rail-to-rail output buffer. The buffer features a Class A (slow mode: AB) output stage to improve stability and reduce settling time. The programmable settling time of the DAC allows the designer to optimize speed versus power dissipation. The applications of the TLV5633IDW include Digital Servo Control Loops, Digital Offset and Gain Adjustment, Industrial Process Control, Machine and Motion Control Devices, Mass Storage Devices.
Parametrics
TLV5633IDW absolute maximum ratings: (1)Supply voltage (DVDD, AVDD to AGND): 7 V; (2)Supply voltage difference range, AVDD - DVDD: -2.8 V to 2.8 V; (3)Reference input voltage range: -0.3 V to VDD + 0.3 V; (4)Digital input voltage range: -0.3 V to VDD + 0.3 V; (5)Operating free-air temperature range, TA: -40℃ to 85℃; (6)Storage temperature range, Tstg: -65℃ to 150℃.
Features
TLV5633IDW features: (1)12-Bit Voltage Output DAC; (2)Programmable Internal Reference; (3)Programmable Settling Time vs Power Consumption, 1μs in Fast Mode; 3.5μs in Slow Mode; (4)8-Bit μController Compatible Interface; (5)Differential Nonlinearity: <0.5 LSB Typ; (6)Voltage Output Range: 2x the Reference Voltage; (7)Monotonic Over Temperature.

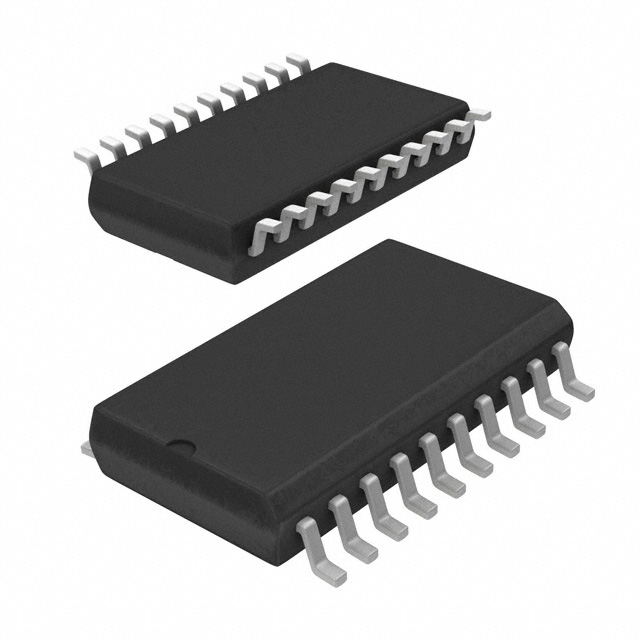

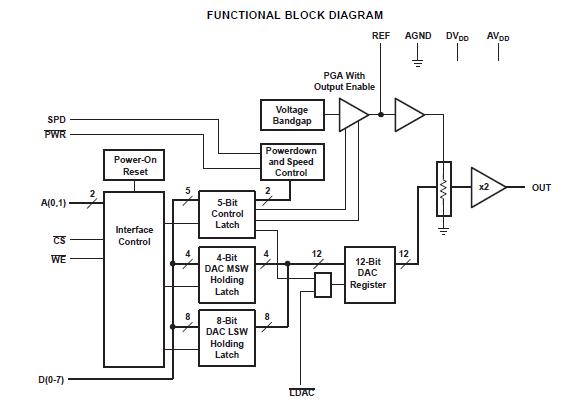

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

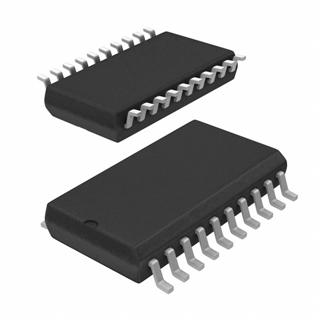

 TLV5633IDW |
Texas Instruments |
DAC (D/A Converters) 12bit DAC w/V Ref |
Data Sheet |
|
|
||||||||||||
|
TLV5633IDWG4 |
Texas Instruments |
DAC (D/A Converters) 2.7-5.5-V Low Power 12-Bit DAC |
Data Sheet |
|
|
||||||||||||
|
TLV5633IDWR |
Texas Instruments |
DAC (D/A Converters) 2.7-5.5-V Low Power 12-Bit DAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLV5633IDWRG4 |
Texas Instruments |
DAC (D/A Converters) 2.7-5.5-V Low Power 12-Bit DAC |
Data Sheet |
Negotiable |
|
||||||||||||
