Product Summary

The TLV5604ID is a quadruple 10-bit voltage output digital-to-analog converter (DAC) with a flexible 4-wire serial interface. The 4-wire serial interface allows glueless interface to TMS320, SPI, QSPI, and Microwire serial ports. The TLV5604ID is programmed with a 16-bit serial word comprised of a DAC address, individual DAC control bits, and a 10-bit DAC value.

Parametrics

TLV5604ID absolute maximum ratings: (1)Supply voltage, (DVDD, AVDD to GND): 7 V; (2)Supply voltage difference, (AVDD to DVDD): –2.8 V to 2.8 V; (3)Digital input voltage range: –0.3 V to DVDD + 0.3 V; (4)Reference input voltage range: –0.3 V to AVDD + 0.3 V; (5)Operating free-air temperature range, TA: –40℃ to 85℃; (6)Storage temperature range, Tstg: –65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLV5604ID features: (1)Four 10-Bit D/A Converters; (2)Programmable Settling Time of 3 μs or 9 μs Typ; (3)TMS320, (Q)SPI, and Microwire Compatible Serial Interface; (4)Internal Power-On Reset; (5)Low Power Consumption: 5.5 mW, Slow Mode – 5-V Supply; 3.3 mW, Slow Mode – 3-V Supply; (6)Reference Input Buffers; (7)Voltage Output Range: 2× the Reference Input Voltage; (8)Monotonic Over Temperature; (9)Dual 2.7-V to 5.5-V Supply (Separate Digital and Analog Supplies); (10)Hardware Power Down (10 nA); (11)Software Power Down (10 nA); (12)Simultaneous Update.

Diagrams

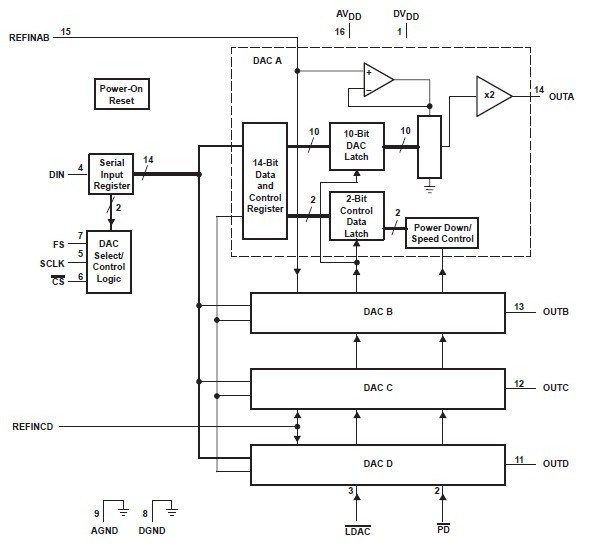

TLV5604ID block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

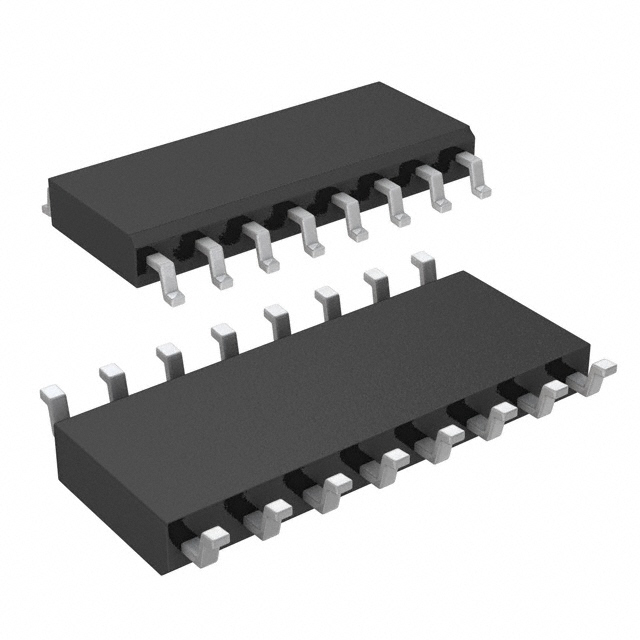

TLV5604ID
TLV5604ID
Texas Instruments
DAC (D/A Converters) 10bit Quad Serial
Data Sheet
0-1: $5.95
1-25: $5.54
25-100: $5.00
100-250: $4.60
TLV5604IDG4
TLV5604IDG4
Texas Instruments
DAC (D/A Converters) 10bit Quad Serial
Data Sheet
0-1: $5.89
1-25: $5.01
25-100: $4.60
100-250: $4.19
TLV5604IDRG4
TLV5604IDRG4
Texas Instruments
DAC (D/A Converters) 10-Bit 3 us Quad DAC Serial Input
Data Sheet
Negotiable
TLV5604IDR
TLV5604IDR
Texas Instruments
DAC (D/A Converters) 10-Bit 3 us Quad DAC Serial Input
Data Sheet
Negotiable
