Product Summary

The TLE2062CD is a low-power JFET-input operational amplifier doubles the bandwidth of the earlier generation TL06x and TL03x BiFET families without significantly increasing power consumption. Texas Instruments Excalibur process also delivers a lower noise floor than the device. On-chip zener trimming of offset voltage yields precision grades for dc-coupled applications. The TLE2062CD devices are pin-compatible with other Texas Instruments BiFETs; they can be used to double the bandwidth of TL06x and TL03x circuits or to reduce power consumption of TL05x, TL07x, and TL08x circuits by nearly 90%.

Parametrics

TLE2062CD absolute maximum ratings: (1)Supply voltage, VCC+ (see Note 1): 19 V; (2)Supply voltage, VCC: 19 V; (3)Differential input voltage, VID (see Note 2): ±38 V; (4)Input voltage range, VI (any input): ±VCC; (5)Input current, II (each input): ±1 mA; (6)Output current, IO: ±80 mA; (7)Total current into VCC+: 80 mA; (8)Total current out of VCC: 80 mA; (9)Duration of short-circuit current at (or below) 25℃ (see Note 3): unlimited.

Features

TLE2062CD features: (1)2× Bandwidth (2 MHz) of the TL06x and TL03x Operational Amplifiers; (2)Low Supply Current: 290 μA/Ch Typ; (3)On-chip Offset Voltage Trimming for Improved DC Performance; (4)High Output Drive, Specified into 100-Ω Loads; (5)Lower Noise Floor Than Earlier Generations of Low-Power BiFETs.

Diagrams

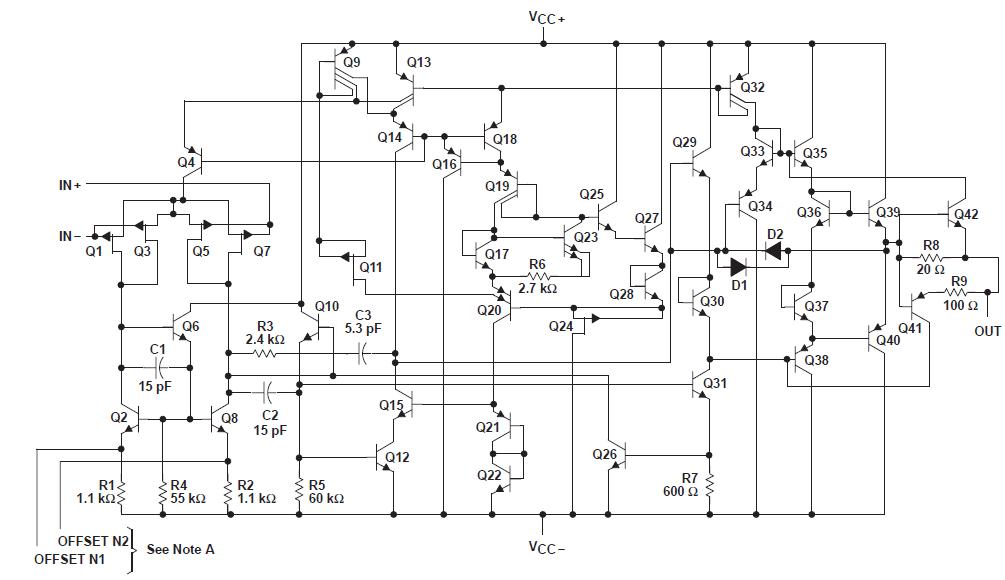

TLE2062CD block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLE2062CD
TLE2062CD
Texas Instruments
Operational Amplifiers - Op Amps Dual Low Power
Data Sheet
0-1: $1.62
1-10: $1.45
10-25: $1.30
25-50: $1.22
