Product Summary
The THS6184PWP is a dual-port, low-power current feedback differential line driver amplifier system ideal for xDSL systems. Its extremely low-power dissipation is ideal for ADSL, ADSL2, ADSL2+, and ADSL2++ systems that must achieve high densities in ADSL central office rack applications by combining two ports, or four amplifiers, into one package. The applications of the THS6184PWP include Ideal For Power Sensitive, High Density ADSL, ADSL2, ADSL2+, and ADSL2++ Systems.
Parametrics
THS6184PWP absolute maximum ratings: (1)–74 dB with ADSL and ADSL2; (2)–71 dB with ADSL2+ and –70 dB with ADSL2++; (3)–83 dBc THD (1 MHz, 100Ω Differential); (4)Output Current: ＞410 mA (25Ω Load); (5)Wide Bandwidth: 45 MHz (Gain = +5).
Features
THS6184PWP features: (1)Trimmed Low-Power Consumption; (2)Low Noise; (3)Low MTPR Distortion; (4)–83 dBc THD (1 MHz, 100Ω Differential); (5)High Output Current: ＞410mA (25Ω Load); (6)Wide Output Swing: 44 Vpp (±12-V, 200Ω Differential); (7)Wide Bandwidth: 45 MHz (Gain = +5); (8)Wide Power Supply Range: ±2.25 V to ±16.5 V.
Diagrams

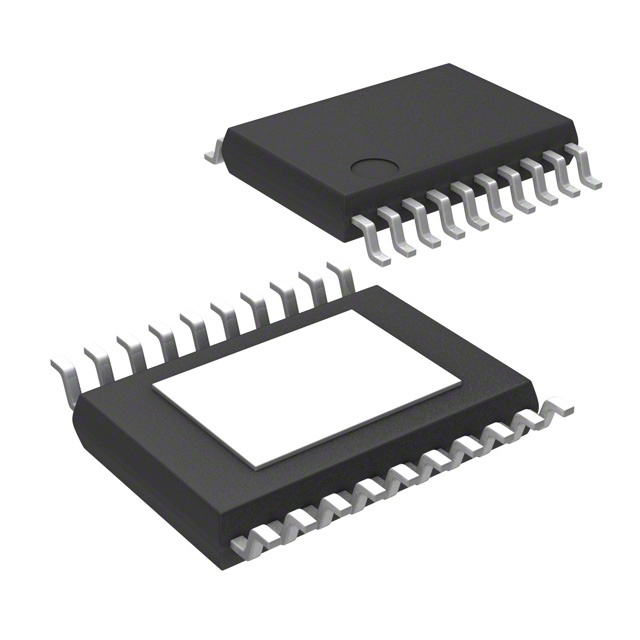

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS6184PWP |
Texas Instruments |
Buffers & Line Drivers xDSL Line Drivers |
Data Sheet |
|
|
||||||||||||
|
THS6184PWPG4 |
Texas Instruments |
Buffers & Line Drivers xDSL Line Drivers |
Data Sheet |
|
|
||||||||||||
|
THS6184PWPRG4 |
Texas Instruments |
Buffers & Line Drivers xDSL Line Drivers |
Data Sheet |
|
|
||||||||||||
|
THS6184PWPR |
Texas Instruments |
Buffers & Line Drivers xDSL Line Drivers |
Data Sheet |
|
|
||||||||||||
