Product Summary

The THS4022ID is a ultra-low voltage noise, high-speed voltage feedback amplifier that is ideal for applications requiring low voltage noise, including communication and imaging. The signal-amplifier THS4021 and the dual-amplifier THS4022ID offer very good ac performance with 350-MHz bandwidth, 470-V/ms slew rate, and 40-ns settling time (0.1%). The THS4022ID is stable at gains of 10 (–9) or greater. The THS4022ID has a high drive capability of 100 mA and draw only 7.8-mA supply current per channel. With total harmonic distortion (THD) of –68 dBc at f = 1 MHz, the THS4022ID is ideally suited for applications requiring low distortion.

Parametrics

THS4022ID absolute maximum ratings: (1)Supply voltage, VCC: ±16.5 V; (2)Input voltage, VI: ±VCC; (3)Output current, IO: 150mA; (4)Differential input voltage, VIO: ±4 V; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Maximum junction temperature, TJ: 150℃; (7)Operating free-air temperature, TA: C-suffix: 0℃ to 70℃; (8)I-suffix:–40℃ to 85℃; (9)Storage temperature, Tstg:–65℃ to 150℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.

Features

THS4022ID features: (1)Ultra-Low 1.5 nV//Hz Voltage Noise; (2)High Speed; (3)Stable at a Gain of 10 (-9) or Greater; (4)High Output Drive, IO = 100 mA (typ); (5)Excellent Video Performance; (6)17 MHz Bandwidth (0.1 dB, G = 10); (7)0.02% Differential Gain; (8)0.08°Differential Phase; (9)Very Low Distortion; (10)THD = -68 dBc (f = 1 MHz, RL = 150Ω); (11)Wide Range of Power Supplies; (12)VCC = ±5V to ±15 V; (13)Available in Standard SOIC or MSOP PowerPADE Package; (14)Evaluation Module Available.

Diagrams

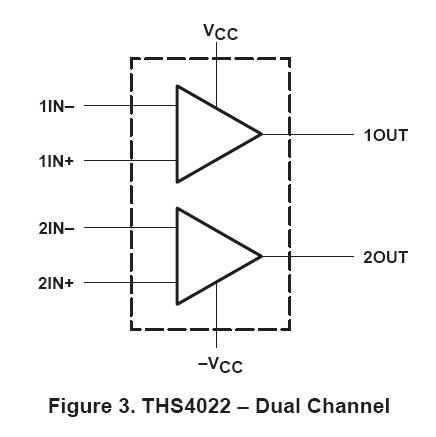

THS4022ID block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
THS4022ID
THS4022ID
Texas Instruments
High Speed Operational Amplifiers Dual 350MHz
Data Sheet
0-1: $6.44
1-25: $5.66
25-100: $4.63
100-250: $4.53
THS4022IDG4
THS4022IDG4
Texas Instruments
High Speed Operational Amplifiers Dual 350MHz
Data Sheet
0-1: $6.66
1-25: $5.66
25-100: $4.63
100-250: $4.53
THS4022IDGN
THS4022IDGN
Texas Instruments
High Speed Operational Amplifiers 350-MHz Low-Noise Vltg-Feedback Dual
Data Sheet
0-1: $6.44
1-25: $5.66
25-100: $4.63
100-250: $4.53
THS4022IDGNG4
THS4022IDGNG4
Texas Instruments
High Speed Operational Amplifiers 350-MHz Low-Noise Vltg-Feedback Dual
Data Sheet
0-1: $6.66
1-25: $5.66
25-100: $4.63
100-250: $4.53
THS4022IDGNR
THS4022IDGNR
Texas Instruments
High Speed Operational Amplifiers 350-MHz Low-Noise Vltg-Feedback Dual
Data Sheet
0-1882: $3.71
1882-2000: $3.57
2000-2500: $3.57
THS4022IDGNRG4
THS4022IDGNRG4
Texas Instruments
High Speed Operational Amplifiers 350-MHz Low-Noise Vltg-Feedback Dual
Data Sheet
0-1882: $3.71
1882-2000: $3.57
2000-2500: $3.57
THS4022IDR
THS4022IDR
Texas Instruments
High Speed Operational Amplifiers 350-MHz Low-Noise Vltg-Feedback Dual
Data Sheet
Negotiable
THS4022IDRG4
THS4022IDRG4
Texas Instruments
High Speed Operational Amplifiers 350-MHz Low-Noise Vltg-Feedback Dual
Data Sheet
Negotiable
