Product Summary
The THS1408IPFB is a 14-bit, 1/3/8 MSPS, single supply analog-to-digital converter with an internal reference, differential inputs, programmable input gain, and an on-chip sample and hold amplifier. Implemented with a CMOS process, the THS1408IPFB has outstanding price/performance and power/speed ratios. The applications of the THS1408IPFB include xDSL Front Ends, Communication, Industrial Control, Instrumentation.
Parametrics
THS1408IPFB absolute maximum ratings: (1)Supply voltage, (AVDD to AGND): 4V; (2)Supply voltage, (DVDD to DGND): 4V; (3)Reference input voltage range, VBG: – 0.3 V to AVDD + 0.3 V; (4)Analog input voltage range:– 0.3 V to AVDD + 0.3 V; (5)Digital input voltage range: – 0.3 V to DVDD + 0.3 V; (6)Operating free-air temperature range, TA: C suffix: 0 to 70℃; (7)I suffix:–40 to 85℃; (8)Storage temperature range, Tstg: –65 to 150℃; (9)Lead temperature 1.6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
THS1408IPFB features: (1)14-Bit Resolution; (2)1, 3, and 8 MSPS Speed Grades Available; (3)Differential Nonlinearity (DNL) ±0.6 LSB Typ; (4)Integral Nonlinearity (INL) ±1.5 LSB Typ; (5)Internal Reference; (6)Differential Inputs; (7)Programmable Gain Amplifier; (8)μP Compatible Parallel Interface; (9)Timing Compatible With TMS320C6000 DSP; (10)3.3-V Single Supply; (11)Power-Down Mode; (12)Monolithic CMOS Design.

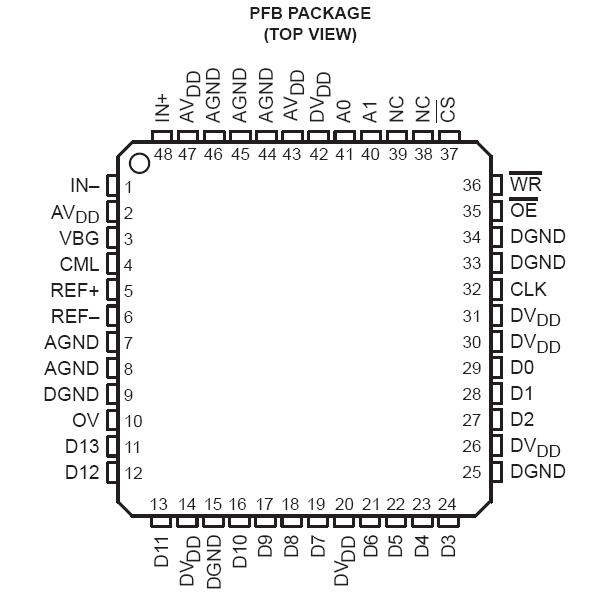

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

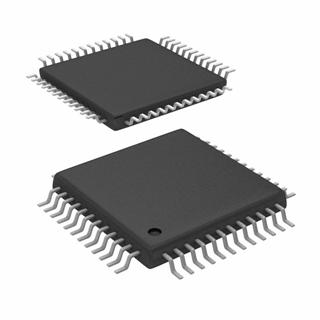

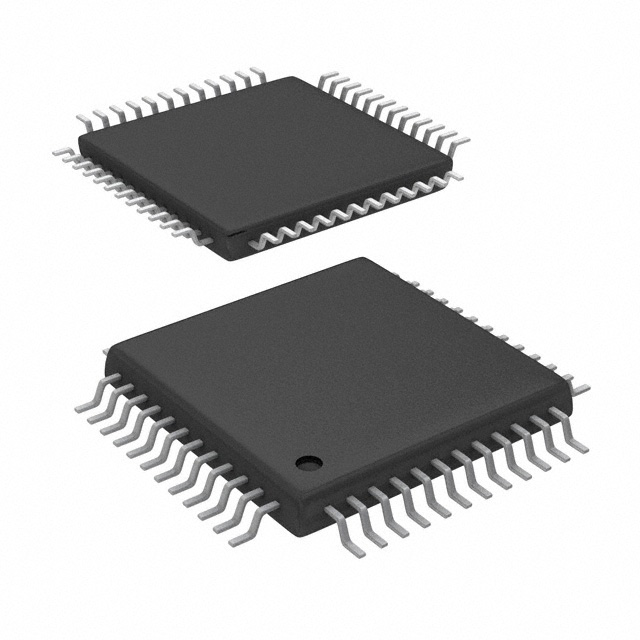

 THS1408IPFB |
Texas Instruments |
ADC (A/D Converters) 14-Bit 1/3/8 MSPS DSP-Compatible ADC |
Data Sheet |
|
|
||||||||
|
THS1408IPFBG4 |
Texas Instruments |
ADC (A/D Converters) 14-Bit 1/3/8 MSPS DSP-Compatible ADC |
Data Sheet |
|
|
||||||||
