Product Summary

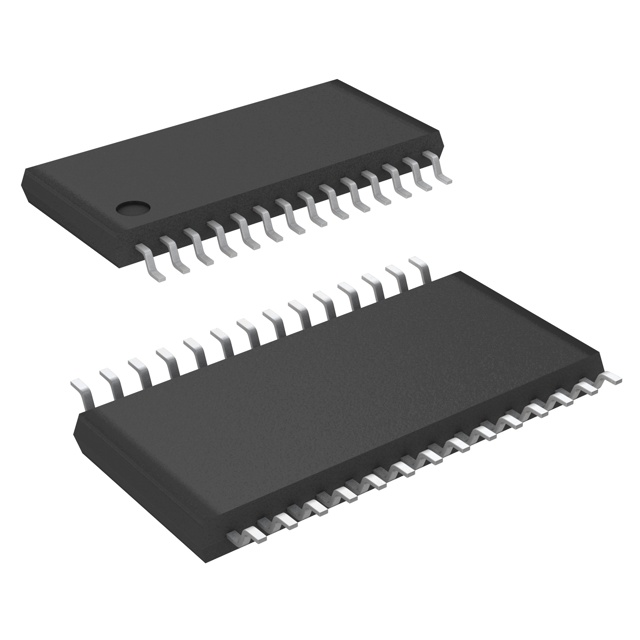

The THS1230IPW is a CMOS, low-power, 12-bit, 30 MSPS analog-to-digital converter (ADC) that operates with a 3.3V supply. The THS1230 gives circuit developers complete flexibility. The analog input to the THS1230IPW is differential with a gain of 0.5 for Mode 2 and 1.0 for Mode 1. The THS1230IPW provides a wide selection of voltage references to match the user’s design requirements. For more design flexibility, the internal reference can be bypassed to use an external reference to suit the dc accuracy and temperature drift requirements of the application. The applications of the THS1230IPW include Set Top Box (STB), Camcorders, Digital Cameras, Copiers, Communications, Test Instruments, IF and Baseband Digitization.
Parametrics
THS1230IPW absolute maximum ratings: (1)AVDD to AGND, DVDD to DGND: –0.3 V to 4 V; (2)Supply voltage range AGND to DGND: –0.3 V to 0.3 V; (3)Reference voltage input range, REFT, REFB to AGND: –0.3 to AVDD + 0.3 V; (4)Analog input voltage range, AIN+, AIN- to AGND: –0.3 to AVDD + 0.3 V; (5)Clock input voltage range, CLK to AGND: –0.3 to AVDD + 0.3 V; (6)Digital input voltage range, digital input to DGND: –0.3 to DVDD + 0.3 V; (7)Digital output voltage range, digital output to DGND: –0.3 to DVDD + 0.3V; (8)Operating junction temperature range, TJ: –40 to 150℃; (9)Storage temperature range, TSTG: – 65 to 150℃; (10)Lead temperature 1,6 mm (1/16 in) from case for 10 seconds: 300℃.
Features
THS1230IPW features: (1)12-Bit Resolution, 30 MSPS Analog-to-Digital Converter; (2)Input Configurations: Differential (0.5x); Differential (1x); (3)3.3-V Supply Operation; (4)Internal Voltage Reference; (5)Out-of-Range Indicator; (6)Power-Down Mode; (7)IF Undersampling.

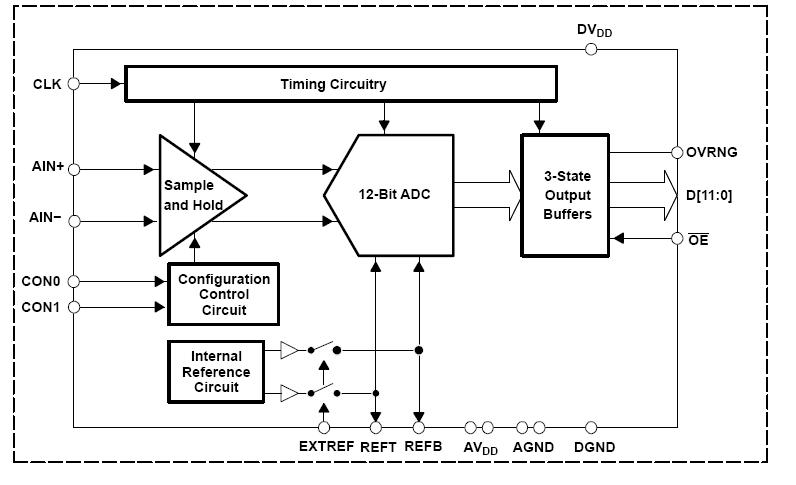

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS1230IPW |
Texas Instruments |
ADC (A/D Converters) Low Power High-Speed ADC |
Data Sheet |
|
|
||||||||||||
|
THS1230IPWG4 |
Texas Instruments |
ADC (A/D Converters) Low Power High-Speed ADC |
Data Sheet |
|
|
||||||||||||
|
THS1230IPWRG4 |
Texas Instruments |
ADC (A/D Converters) Low Power High-Speed ADC |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS1230IPWR |
Texas Instruments |
ADC (A/D Converters) Low Power High-Speed ADC |
Data Sheet |
Negotiable |
|
||||||||||||
