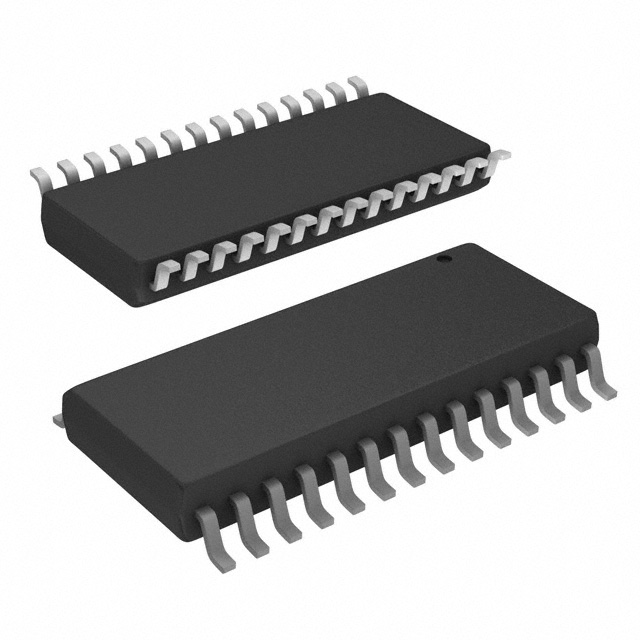

THS1041IDW

Product Summary

The THS1041IDW is a CMOS, low power, 10-bit, 40 MSPS analog-to-digital converter (ADC) that operates from a single 3-V supply. The THS1041IDW has been designed to give circuit developers flexibility. The analog input to the THS1041IDW can be either single-ended or differential. This device has a built-in clamp amplifier whose clamp input level can be driven from an external dc source or from an internal high-precision 10-bit digital clamp level programmable via an internal CLAMP register. A 3-bit PGA is included to maintain SNR for small signals. The applications of the THS1041IDW include Video/CCD Imaging, Communications, Set-Top-Box, Medical.

Parametrics

THS1041IDW absolute maximum ratings: (1)Supply voltage range: AVDD to AGND, DVDD to DGND:–0.3 V to 4 V; (2)AGND to DGND:–0.3 V to 0.3 V; (3)AVDD to DVDD:–4 V to 4 V; (4)MODE input voltage range, MODE to AGND:–0.3 V to AVDD + 0.3 V; (5)Reference voltage input range, REFT, REFB, to AGND:–0.3 V to AVDD + 0.3 V; (6)Analog input voltage range, AIN to AGND:–0.3 V to AVDD + 0.3 V; (7)Reference input voltage range, VREF to AGND:–0.3 V to AVDD + 0.3 V; (8)Reference output voltage range, VREF to AGND:–0.3 V to AVDD + 0.3 V; (9)Clock input voltage range, CLK to AGND:–0.3 V to AVDD + 0.3 V; (10)Digital input voltage range, digital input to DGND:–0.3 V to DVDD + 0.3 V; (11)Digital output voltage range, digital output to DGND:–0.3 V to DVDD + 0.3 V; (12)Operating junction temperature range, TJ: 0 to 150℃; (13)Storage temperature range, Tstg:–65 to 150℃; (14)Lead temperature 1,6 mm (1/16 in) from case for 10 seconds: 300℃.

Features

THS1041IDW features: (1)Analog Supply 3 V; (2)Digital Supply 3 V; (3)Configurable Input Functions; (4)Built-In Programmable Gain Amplifier (PGA); (5)Differential Nonlinearity: ±0.45 LSB; (6)Signal-to-Noise: 60 dB Typ at 4.8 MHz; (7)Spurious Free Dynamic Range: 72 dB; (8)Adjustable Internal Voltage Reference; (9)Unsigned Binary/2s Complement Output; (10)Out-of-Range Indicator; (11)Power-Down Mode.

Diagrams
