Product Summary
The THS1040IPW is a CMOS, low power, 10-bit, 40-MSPS analog-to-digital converter (ADC) that operates from a single 3-V supply. The THS1040IPW has been designed to give circuit developers flexibility. The analog input to the THS1040IPW can be either single-ended or differential. The THS1040IPW provides a wide selection of voltage references to match the user’s design requirements. For more design flexibility, the internal reference can be bypassed to use an external reference to suit the dc accuracy and temperature drift requirements of the application. The applications of the THS1040IDW include Video/CCD Imaging, Communications, Set-Top Box, Medical.
Parametrics
THS1040IPW absolute maximum ratings: (1)Supply voltage range: AVDD to AGND, DVDD to DGND: -0.3 V to 4 V; (2)AGND to DGND: -0.3 V to 0.3 V; (3)AVDD to DVDD: -4 V to 4 V; (4)MODE input voltage range, MODE to AGND: -0.3 V to AVDD + 0.3 V; (5)Reference voltage input range, REFT, REFB, to AGND: -0.3 V to AVDD + 0.3 V; (6)Analog input voltage range, AIN to AGND: -0.3 V to AVDD + 0.3 V; (7)Reference input voltage range, VREF to AGND: -0.3 V to AVDD + 0.3 V; (8)Reference output voltage range, VREF to AGND: -0.3 V to AVDD + 0.3 V; (9)Clock input voltage range, CLK to AGND: -0.3 V to AVDD + 0.3 V; (10)Digital input voltage range, digital input to DGND: -0.3 V to DVDD + 0.3 V; (11)Digital output voltage range, digital output to DGND: -0.3 V to DVDD + 0.3 V; (12)Operating junction temperature range, TJ: 0 to 150℃; (13)Storage temperature range, Tstg: -65 to 150℃; (14)Lead temperature 1,6 mm (1/16 in) from case for 10 seconds: 300℃.
Features
THS1040IPW features: (1)Analog Supply 3 V; (2)Digital Supply 3 V; (3)Configurable Input Functions: Single Ended; Differential; (4)Differential Nonlinearity: ±0.45 LSB; (5)Signal-to-Noise: 60 dB Typ f(IN) at 4.8 MHz; (6)Spurious Free Dynamic Range: 72 dB; (7)Adjustable Internal Voltage Reference; (8)On-Chip Voltage Reference Generator; (9)Unsigned Binary Data Output; (10)Out-of-Range Indicator; (11)Power-Down Mode.

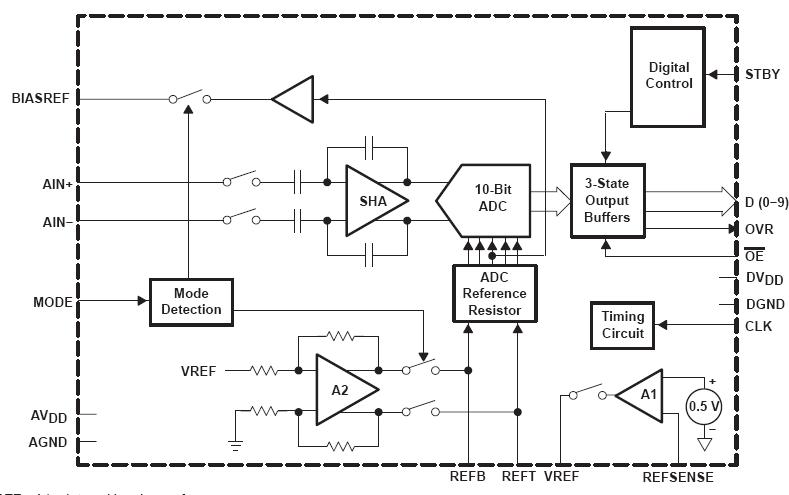

Diagrams

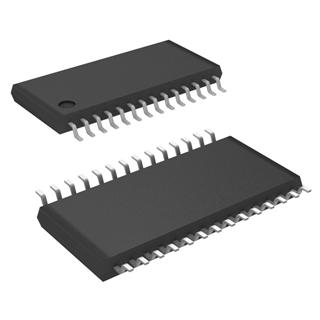

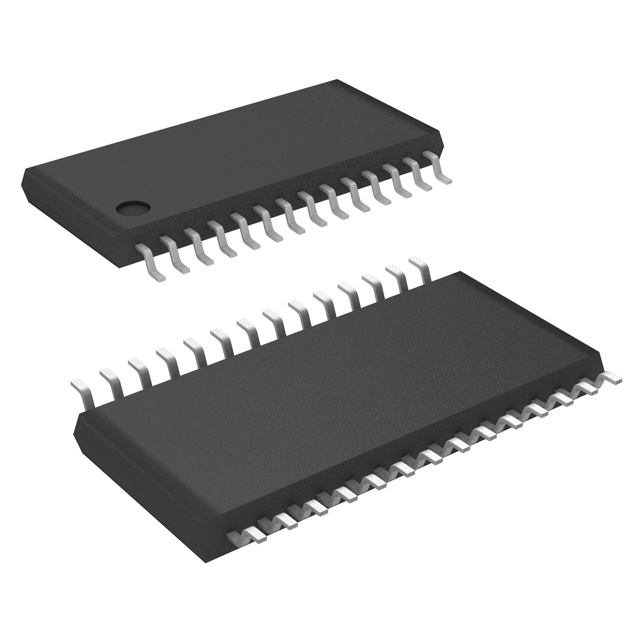

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS1040IPW |
Texas Instruments |
ADC (A/D Converters) 10 Bit 40 MSPS Low Power ADC |
Data Sheet |
|
|
||||||||||||
|
THS1040IPWG4 |
Texas Instruments |
ADC (A/D Converters) 10 Bit 40 MSPS Low Power ADC |
Data Sheet |
|
|
||||||||||||
|
THS1040IPWRG4 |
Texas Instruments |
ADC (A/D Converters) 10 Bit 40 MSPS Low Power ADC |
Data Sheet |
|
|
||||||||||||
|
THS1040IPWR |
Texas Instruments |
ADC (A/D Converters) 10 Bit 40 MSPS Low Power ADC |
Data Sheet |
|
|
||||||||||||
