Product Summary

The TAS3103DBT is an integrated stereo digital amplifier power stage with an advanced protection system. The TAS3103DBT is capable of driving a 6-W bridge-tied load (BTL) at up to 25 W per channel with low integrated noise at the output, low THD+N performance, and low idle power dissipation. The applications of the TAS3103DBT include Televisions, Mini/Micro Audio Systems, DVD Receivers, Home Theaters.

Parametrics

TAS3103DBT absolute maximum ratings: (1)VDD to AGND: –0.3 V to 13.2 V; (2)GVDD_X to AGND: –0.3 V to 13.2 V; (3)PVDD_X to GND_X (2): –0.3 V to 30 V; (4)OUT_X to GND_X (2): –0.3 V to 30 V; (5)BST_X to GND_X (2): –0.3 V to 43.2 V; (6)VREG to AGND: –0.3 V to 4.2 V; (7)GND_X to GND: –0.3 V to 0.3 V; (8)GND_X to AGND: –0.3 V to 0.3 V; (9)GND to AGND: –0.3 V to 0.3 V; (10)PWM_X, OC_ADJ, M1, M2, M3 to AGND: –0.3 V to 4.2 V; (11)RESET_X, SD, OTW to AGND: –0.3 V to 7V; (12)Maximum continuous sink current (SD, OTW): 9mA; (13)Maximum operating junction temperature range, TJ: 0 to 150℃; (14)Storage temperature range: –40℃ to 125℃; (15)Lead temperature, 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (16)Minimum pulse duration, low: 50 ns.

Features

TAS3103DBT features: (1)2×20W at 10% THD+N Into 8Ω BTL; (2)2×25W at 10% THD+N Into 6Ω BTL; (3)＞100dB SNR (A-Weighted); (4)＜0.1% THD+N at 1W; (5)High-Efficiency Power Stage (＞90%) With 140mW Output MOSFETs; (6)Power-On Reset for Protection on Power Up Without Any Power-Supply Sequencing; (7)PWM Activity Detector to detect stopped PWM inputs and protect the system; (8)Error Reporting; (9)EMI Compliant When Used With Recommended System Design; (10)Intelligent Gate Drive; (11)Pin Compatible With the TAS5142DDV.

Diagrams

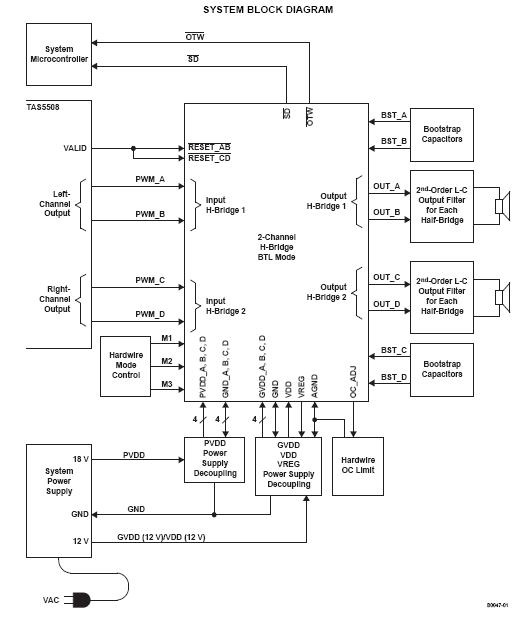

TAS3103DBT block diagram
