STP16CPC05TTR

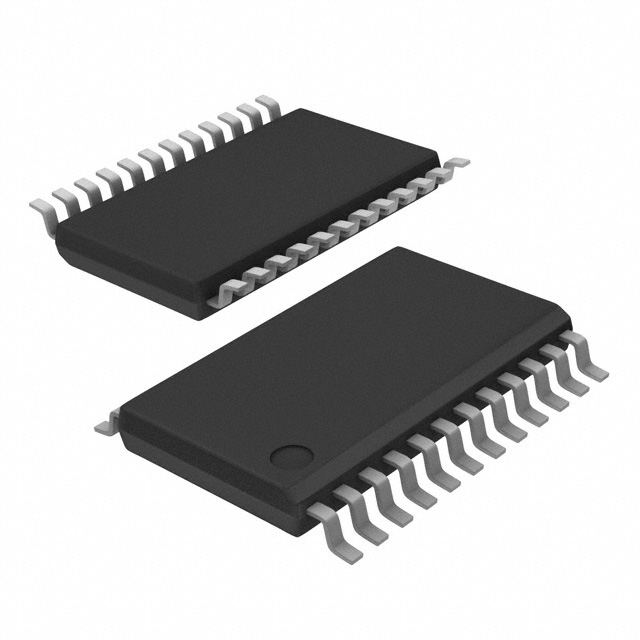

STP16CPC05TTR, Low voltage, 16-Bit, constant current LED sink driver, TSSOP, 0 to 7V, 1300mA, 50MHz, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.51~1.33 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.51~1.33

PartNumber:: STP16CPC05TTR

Brand:: STMicroelectronics - ST | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:STP16CPC05TTR
US $0.51 - 1.33
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The STP16CPC05TTR is a Low voltage 16-Bit constant current LED sink driver. It is designed for LED panel displays. The STP16CPC05TTR contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bit, D-type storage register. In the output stage, sixteen regulated current sources provide from 5mA to 80mA constant current to drive the LEDs. The STP16CPC05TTR guarantees a 20V output driving capability, allowing users to connect more LEDs in series.The high clock frequency, 30MHz, makes the device suitable for high data rate transmission.

Parametrics

STP16CPC05TTR absolute maximum ratings: (1)VDD Supply voltage: 0 to 7 V; (2)VO Output voltage: -0.5 to 20 V; (3)IO Output current: 80mA; (4)VI Input voltage: -0.4 to VDD+0.4 V; (5)IGND GND terminal current: 1300mA; (6)fCLK Clock frequency: 50 MHz.

Features

STP16CPC05TTR features: (1)Low voltage power supply down to 3V; (2)16 constant current output channels; (3)Adjustable output current through external resistor; (4)Serial Data IN/Parallel Data OUT; (5)Can be driven by a 3.3V microcontroller; (6)Output current: 5-80mA; (7)Max clock frequency 30MHz; (8)ESD protection 2.5kV HBM, 200V MM.
