Product Summary

The STM32W108CBU61TR is a High-performance, IEEE 802.15.4 wireless system-on-chip. The STM32W108CBU61TR is a fully integrated System-on-Chip that integrates a 2.4 GHz, IEEE 802.15.4-compliant transceiver, 32-bit ARM Cortex M3 microprocessor, Flash and RAM memory, and peripherals of use to designers of ZigBee-based systems. The applications of the STM32W108CBU61TR include Smart energy, Building automation and control, Home automation and control, Security and monitoring, ZigBeeR Pro wireless sensor networking, RF4CE products and remote controls, 6LoWPAN and custom protocols.

Parametrics

STM32W108CBU61TR absolute maximum ratings: (1)Regulator input voltage (VDD_PADS): -0.3 to +3.6 V; (2)Analog, Memory and Core voltage (VDD_24MHZ, VDD_VCO, VDD_RF, VDD_IF, VDD_PADSA, VDD_MEM, VDD_PRE, VDD_SYNTH, VDD_CORE): -0.3 to +2.0 V; (3)Voltage on RF_P,N; RF_TX_ALT_P,N: -0.3 +3.6 V; (4)RF Input Power, RX signal into a lossless balun: 15dBm.

Features

STM32W108CBU61TR features: (1)Complete system-on-chip; (2)Industry-leading ARM Cortex-M3 processor; (3)Low power consumption, advanced management; (4)Exceptional RF performance; (5)Innovative network and processor debug.

Diagrams

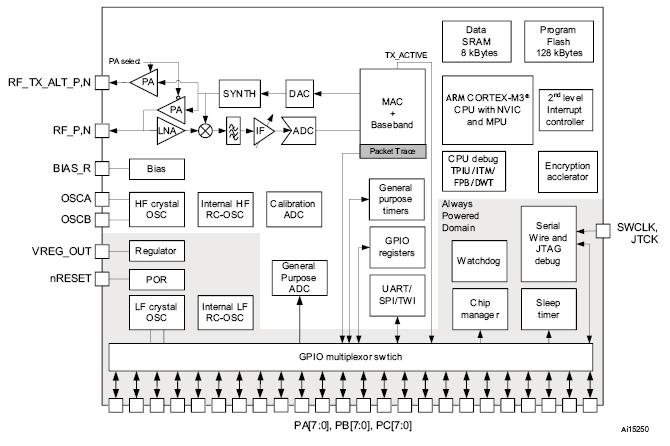

STM32W108CBU61TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

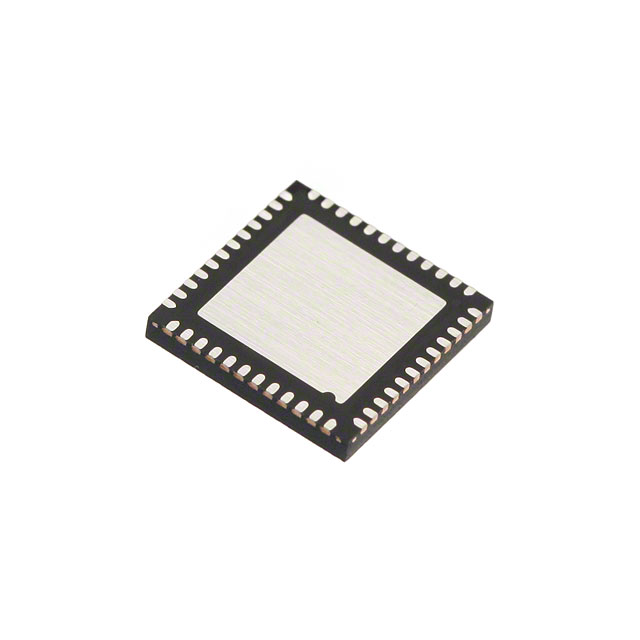

STM32W108CBU61TR
STM32W108CBU61TR
STMicroelectronics
RF Microcontrollers (MCU) 32BIT ARM Cortex M3 IEEE 802.15.4 64kB
Data Sheet
0-1800: $3.47
1800-2500: $3.23
