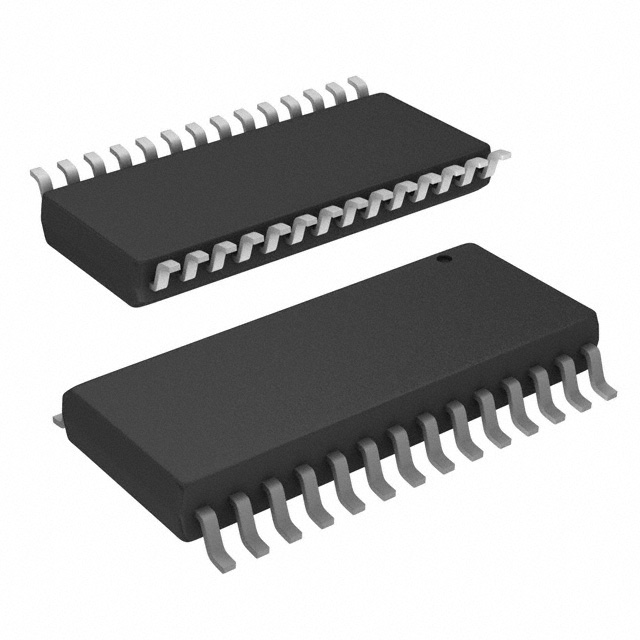

Product Summary
The SN65LV1021DB is a serializer/deserializer. It comprises a 10-bit serdes chipset designed to transmit and receive serial data over LVDS differential backplanes at equivalent parallel word rates from 10 MHz to 40 MHz. Including overhead, this translates into a serial data rate between 120-Mbps and 480-Mbps payload-encoded throughput. The SN65LV1021DB can be entered into a power-down state when no data transfer is required. Alternatively, a mode is available to place the output pins in the high-impedance state without losing PLL lock.
Parametrics
SN65LV1021DB absolute maximum ratings: (1)VCC to GND:–0.3 V to 4 V; (2)LVTTL input voltage:–0.3 V to (VCC + 0.3 V); (3)LVTTL output voltage:–0.3 V to (VCC + 0.3 V); (4)LVDS receiver input voltage:–0.3 V to 3.9 V; (5)LVDS driver output voltage:–0.3 V to 3.9 V; (6)LVDS output short circuit duration: Continuous; (7)Electrostatic discharge: HBM: up to 6 kV; (8)MM: up to 200 V; (9)Junction temperature: 150℃; (10)Storage temperature:–65 to 150℃; (11)Lead temperature (soldering, 4 seconds): 260℃; (12)Maximum package power dissipation, TA = 25℃: 1.27W; (13)Package derating: 10.3mW/℃ above 25℃.
Features
SN65LV1021DB features: (1)100-Mbps to 400-Mbps Serial LVDS Data Payload Bandwidth at 10-MHz to 40-MHz System Clock; (2)Pin-Compatible Superset of NSM DS92LV1021/DS92LV1212; (3)Chipset (Serializer/Deserializer) Power Consumption <350 mW (Typ) at 40 MHz; (4)Synchronization Mode for Faster Lock; (5)Lock Indicator; (6)No External Components Required for PLL; (7)Low-Cost 28-Pin SSOP Package; (8)Industrial Temperature Qualified, TA = -40 to 85℃; (9)Programmable Edge Trigger on Clock (Rising or Falling Edge); (10)Flow-Through Pinout for Easy PCB Layout.

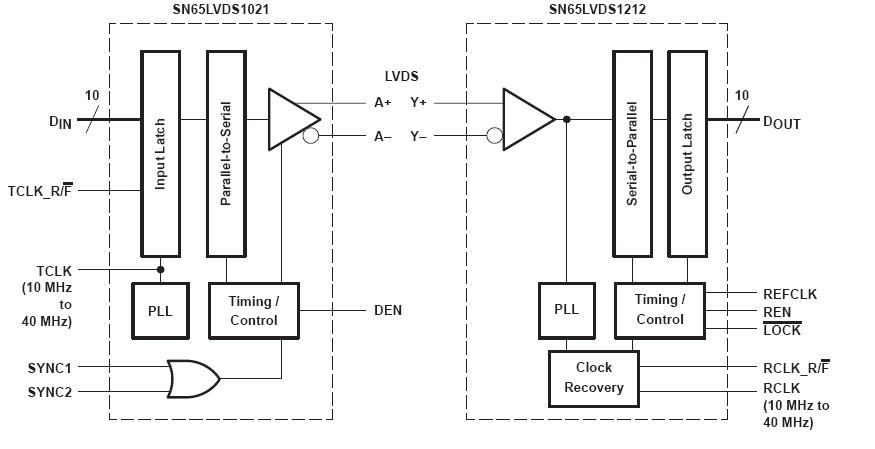

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN65LV1021DB |
Texas Instruments |
LVDS Interface IC 10:1 LVDS Serdes Trnsmtr 100-400 Mbps |
Data Sheet |
|
|
||||||||||||
|
SN65LV1021DBG4 |
Texas Instruments |
LVDS Interface IC 10:1 LVDS Serdes Trnsmtr 100-400 Mbps |
Data Sheet |
|
|
||||||||||||
|
SN65LV1021DBR |
Texas Instruments |
LVDS Interface IC 10:1 LVDS Serdes Trnsmtr 100-400 Mbps |
Data Sheet |
|
|
||||||||||||
|
SN65LV1021DBRG4 |
Texas Instruments |
LVDS Interface IC 10:1 LVDS Serdes Trnsmtr 100-400 Mbps |
Data Sheet |
|
|
||||||||||||
